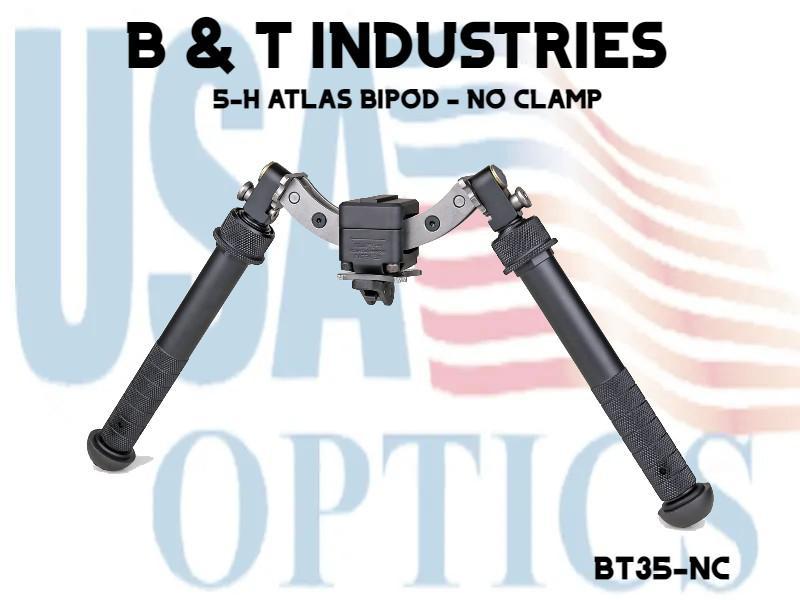

B & T INDUSTRIES, BT35-NC, 5-H ATLAS BIPOD - NO CLAMP

The BT35-NC 5-H Atlas Bipod “No Clamp” has a two hole pattern of 1.100” with the holes being 10/32 threads. It requires the 5-H-ADM Lever or will mount directly to the BT19 AI Spigot or BT70 M-LOK Adapter. It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Includes two 10-32 x 3/8″ flathead socket screws. Available in black only.

• Height Range - 4.8 – 10″ (6.6” at 90°)
• Pan - 30 degrees
• Cant - 30 degrees
• Pan and Cant can be locked out at top dead center
• Pan and Cant Tension Wheel has Detent adjustability and Cam-Lock
• Position Button - 0.5″ diameter
• 5 leg positions - 0, 45, 90, 135 & 180 degrees
• Non-Rotating Legs - outer leg does not rotate around inner leg
• Weight - 25.74 ounces approx.
• Footprint - 14.5–19.5″
