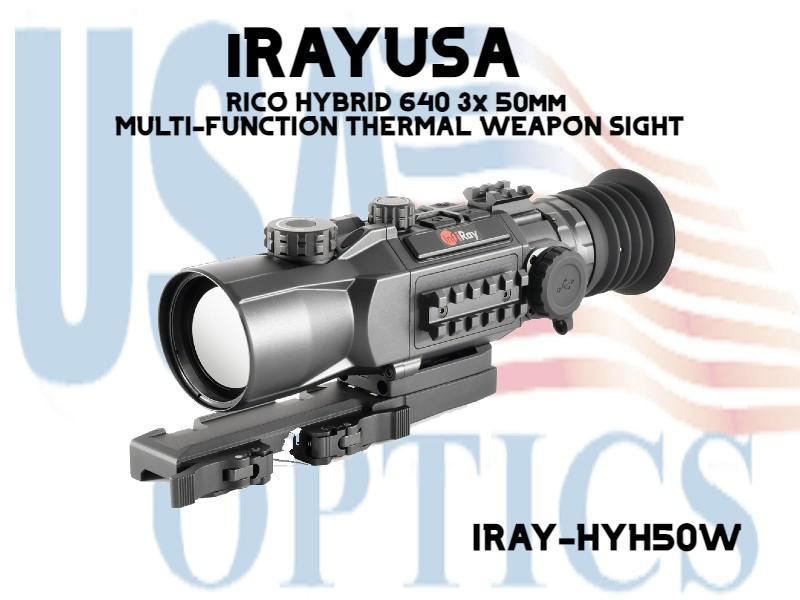

iRAYUSA, IRAY-HYH50W, RICO HYBRID 640 3x 50mm MULTI-FUNCTION THERMAL WEAPON SIGHT

The RICO HYBRID fuses the capabilities of a thermal clip-on and a thermal weapon sight to create a new breed of thermal device. This new HYBRID breed gives you never-before-seen versatility and performance boasting a 2,400 yard detection range as a dedicated thermal sight or an inline clip-on sight with day optics up to 10X.  The combination of the HYBRID’s low-distortion orthoscopic eyepiece paired with a 1.03” 2560x1920 UHD display allows for an extra large sight picture with edge to edge clarity. The HYBRID’s extra large sight picture is comfortable viewing as a dedicated sight, and still maintains the pixel density and resolution for use as a clip-on optic. The HYBRID also unlocks advanced new features such as compatibility with a 2,000 yard laser rangefinder, a custom reticle generator, bluetooth, and an onboard ballistic solver.
                                                                                   FEATURES

• Mobile App - Yes
• Wifi - Yes
• Image Capture - Yes
• Connector Type - USB-C
• Video Output - Analog RS-170/NTSC
• Connector Output - Power/Data
• Onboard Recording - Yes
• Warranty - 5 Years
• Reticle - 8 (7 Static, 1 Custom BDC Reticle)
• Color Palettes - White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline
• Rangefinder - ILR-2000 LRF (Optional/Not Included)
• Picture-in-Picture - Yes
• Storage Capacity - 64GB
• User-Updatable Firmware - Yes
• One-Shot Zero - Yes
• Stand-by Mode - Yes
• Power Source - IBP-1 Li-ion Battery Pack (6+ Hours)
• Run Time - 6+
• External Power Source - IBP-1 Li-ion Battery Pack (6+ Hours)
• Startup Time - Under 10 Seconds

OPTICS

• Objective Focal Length - 50mm
• Detection Range - 2400 Yards
• Objective Lens Material - Germanium
• Optical Magnification - 3X
• Digital Magnification - 8X, stepped
• Focusing Mechanism - Manual Focus
• Display Type - AMOLED
• Vertical Angular Field of View - 6.6°
• Horizontal Angular Field of View - 8.8°
• Objective F# - 1.1
• Objective Diameter - 50mm
• Eye Relief - 60mm
• Diopter Range - -4 - +2
• Display Resolution - 2560×2560

ENVIRONMENTAL

• Recoil Rating - 1000 g/s² (300 Win./7mm Mag)
• Operating Temperature Range - -4°F~122°F

PHYSICAL

• Mounting Interface - Picatinny STD-1913 rail
• Height - 2.99
• Width - 3.03
• Length - 11.02
• Housing Material - Aluminum
• Weight - 40.5

SENSOR

• Device Technology - Thermal Imaging
• Sensor Type - InfiRay MICRO II
• Sensor Pixel Size - 12μm
• Thermal Sensitivity - <50mk
• Non-Uniformity Correction (NUC) - Manual, Automatic, Semi-Automatic
• Spectral Response - 8-12 Microns
• Sensor Frame Rate - 50hz
• Sensor Resolution - 640×512
