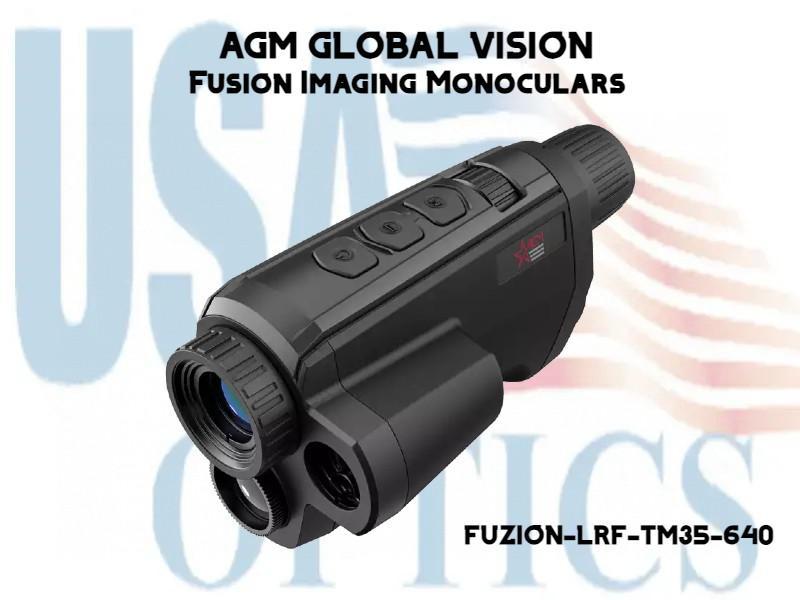

AGM, FUZION-LRF-TM35-640, FUSION IMAGING MONOCULARS

The AGM Fuzion LRF TM35-640 Thermal & Digital Day/Night Vision monocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind this monocular lies within the main thermal viewing channel, with its high-sensitivity 12 micron 640x512 thermal detector. This sensor from AGM will ensure that not only are human-sized heat signatures detectable at up to 1 mile (1750m), but also that foliage and other background imagery will be crisp and detailed in closer distances/ranges. Unlike other thermal monoculars on the market, the Fuzion LRF also come outfitted with a digital night vision channel as well, which is great for aiding in recognition of targets detected by the thermal channel. The built-in 600m laser rangefinder simply takes the Fuzion LRF to another level, and this is without even mentioning its 16GB of internal memory and Wi-Fi compatibility.The Fuzion LRF also comes packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: high-sensitivity thermal detector, 35mm Germanium lens with a 1.0 aperture, 1920x1080 ultra-low light CMOS sensor, various viewing modes, including fusion imaging and multiple color palettes, 2X base magnification with 8X digital zoom, picture-in-picture mode, built-in laser rangefinder,  up to 5 hours of battery life on one removable, rechargeable 18650 battery, USB Type-C port for external power capabilities, IP67 waterproof rating. The package includes a long-range IR illuminator, wrist strap, charger, and of course AGM’s 5 Year Transferable Warranty!

• Bi-spectrum image fusion and object highlight
• Detail enhancement and target recognition
• Selection of thermal view channel, visible light channel, or both them combined
• 12 μm, 35 mK NETD high sensitivity thermal detector
• Fast 50Hz imaging
• 1x, 2x, 4x, 8x digital zoom
• Digital image processing technology
• Ultra-low illumination optical channel
• 1920×1080 Optical resolution
• Eye-safe laser rangefinder
• 1024×768 resolution, 0.39-inch OLED display
• Video recording and snapshot, built-in EMMC (16 GB)
• Wi-Fi hotspot
• Standby mode
• Up to 5 hours continuous running
• Waterproof
• 5-Year Warranty

• Palettes - Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion
• Working Temperature - -20°C to 55°C (-4°F to 131°F)
• Dimension (LxWxH) - 168 × 87 × 74 mm (6.6 × 3.4 × 2.9 in)
• Distance Measurement - Yes (Laser Rangefinder: up to 600 m, ±1 m accuracy)
• Scene Mode - Jungle, Recognition
• Hotspot - Yes
• Observation Distance - 1750m/yd
• Detector type - 12 μm VOx Uncooled Focal Plane Arrays
• Response Waveband - 8 μm to 14 μm
• Optical Image Sensor - 1/2” Progressive Scan CMOS, 1920×1080@25fps
• FFC (Flat Field Correction) - Auto, Manual, External Correction
• Highest Temperature Spot Tracking - Yes
• Standby Mode - Yes
• Refresh rate - 50 Hz
• Aperture - F1.0
• Resolution - 640 × 512
• Laser Wavelength - 905 nm
• Optical magnification - 2x – 16x
• Lens (focal length) - Thermal Lens Focal Length - 25mm Optical Module Lens Focal Length - 22mm
• Power - 5 VDC/2 A, USB Type-C interface Supports external power supply
• Field of view (H × X) - 12.5° × 10°
• Digital zoom - 1x, 2x, 4x, 8x
• Monitor - 1024x768, 0.39 inch, OLED, 50Hz
• Storage - Built-in 16 GB EMMC
• Record Video - On-board video recording
• Capture Snapshot - Yes
• Battery Type - One 18650 rechargeable battery (removable)
• CVBS Output - Yes (via USB)
• Battery Operating Time - Up to 5 hours continuous running (@25°C, WiFi and CVBS off) Up to 3 hours continuous running (@25°C, WiFi and CVBS on)
• Battery Capacity Display - Yes
• Weight - 520g (1.15 Ib)
• Protection Level - IP67 (Waterproof)

• Rubber eyepiece
• 18650 Rechargeable Battery 2x
• USB Cable
• Battery Charger
• Power Adapter
• Lens Cloth
• User Manual
