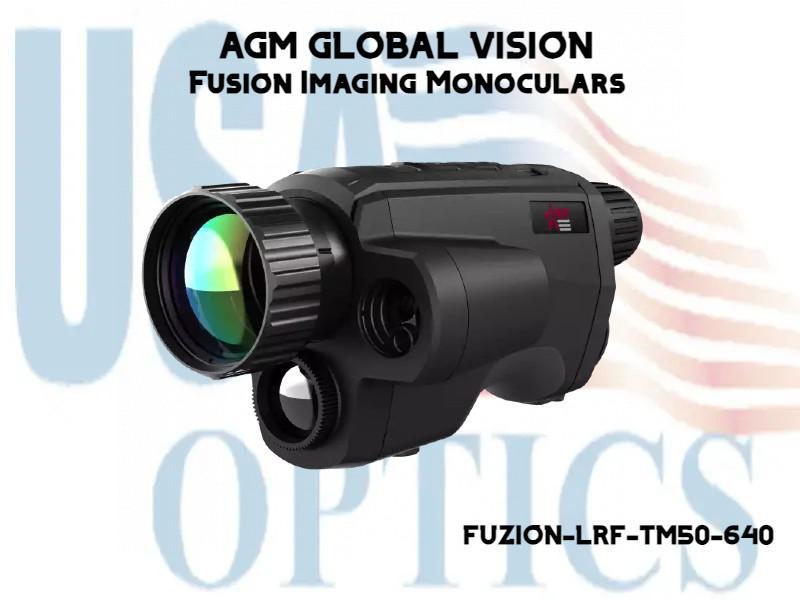

AGM, FUZION-LRF-TM50-640, FUSION IMAGING MONOCULARS

AGM, FUZION-LRF-TM50-640, FUSION IMAGING MONOCULARS

Regular price $3,495.00 USD
Regular price Sale price $3,495.00 USD
Sale Sold out
FUSION IMAGING MONOCULARS

The AGM Fuzion LRF TM50-640 Thermal & Digital Day/Night Vision monocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind this monocular lies within the main thermal viewing channel, with its high-sensitivity 12 micron 640x512 thermal detector. This sensor from AGM will ensure that not only are human-sized heat signatures detectable at up to 1.6 miles (2600m), but also that foliage and other background imagery will be crisp and detailed in closer distances/ranges. Unlike other thermal monoculars on the market, the Fuzion LRF also come outfitted with a digital night vision channel as well, which is great for aiding in recognition of targets detected by the thermal channel. The built-in 600m laser rangefinder simply takes the Fuzion LRF to another level, and this is without even mentioning its 16GB of internal memory and Wi-Fi compatibility.The Fuzion LRF also comes packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: high-sensitivity thermal detector, 50mm Germanium lens with a 1.2 aperture, 1920x1080 ultra-low light CMOS sensor, various viewing modes, including fusion imaging and multiple color palettes, 3X base magnification with 8X digital zoom, picture-in-picture mode, built-in laser rangefinder,  up to 5 hours of battery life on one removable, rechargeable 18650 battery, USB Type-C port for external power capabilities, IP67 waterproof rating. The package includes a long-range IR illuminator, wrist strap, charger, and of course AGM’s 5 Year Transferable Warranty!

FEATURES


  • Bi-spectrum image fusion and object highlight
  • Detail enhancement and target recognition
  • Selection of thermal view channel, visible light channel, or both them combined
  • 12 μm, 35 mK NETD high sensitivity thermal detector
  • Fast 50Hz imaging
  • 1x, 2x, 4x, 8x digital zoom
  • Digital image processing technology
  • Ultra-low illumination optical channel
  • 1920×1080 Optical resolution
  • Eye-safe laser rangefinder
  • 1024×768 resolution, 0.39-inch OLED display
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Wi-Fi hotspot
  • Standby mode
  • Up to 5 hours continuous running
  • Waterproof
  • 5-Year Warranty
SPECIFICATIONS

  • Thermal Lens Focal Length - 50 mm
  • Digital Zoom - 1x, 2x, 4x, 8x
  • Detection Range - 2,600 m/yd
  • Palettes - Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion
  • Optical Magnification - 3x – 24x
  • Dimensions - 184 × 87 × 74 mm (7.2 × 3.4 × 2.9 in)
  • Weight (w/o batteries) - 548g (1.15 Ib)
  • Working Temperature - -20°C to 55°C (-4°F to 131°F)
  • Distance Measurement - 905 nm
  • Scene Mode - Jungle, Recognition
  • Hotspot - Yes
  • Detector type - 12 μm VOx Uncooled Focal Plane Arrays
  • Response Waveband - 8 μm to 14 μm
  • Optical Image Sensor - 400-1000 nm
  • FFC (Flat Field Correction) - Auto, Manual, External Correction
  • Highest Temperature Spot Tracking - Yes
  • Standby Mode - Yes
  • Refresh rate - 50 Hz
  • Aperture - F1.2
  • Resolution - 640 × 512
  • Laser Wavelength - Class 1
  • Power - 5 VDC/2 A, USB Type-C interface Supports external power supply
  • Field of view (H × X) - 8.8° × 7°
  • Monitor - Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion
  • Storage - 16 GB EMMC
  • Record Video - On-board video recording
  • Capture Snapshot - Yes
  • Battery Type - One 18650 rechargeable battery (removable)
  • CVBS Output - Yes (via USB)
  • ]Battery Operating Time - Up to 5 hours continuous running (@25°C, WiFi and CVBS off) Up to 3 hours continuous running (@25°C, WiFi and CVBS on)
  • Battery Capacity Display - Yes
  • Protection Level - IP67 (Waterproof)
Package Includes

  • Rubber eyepiece
  • 18650 Rechargeable Battery 2x
  • USB Cable
  • Battery Charger
  • Power Adapter
  • Lens Cloth
  • User Manual
