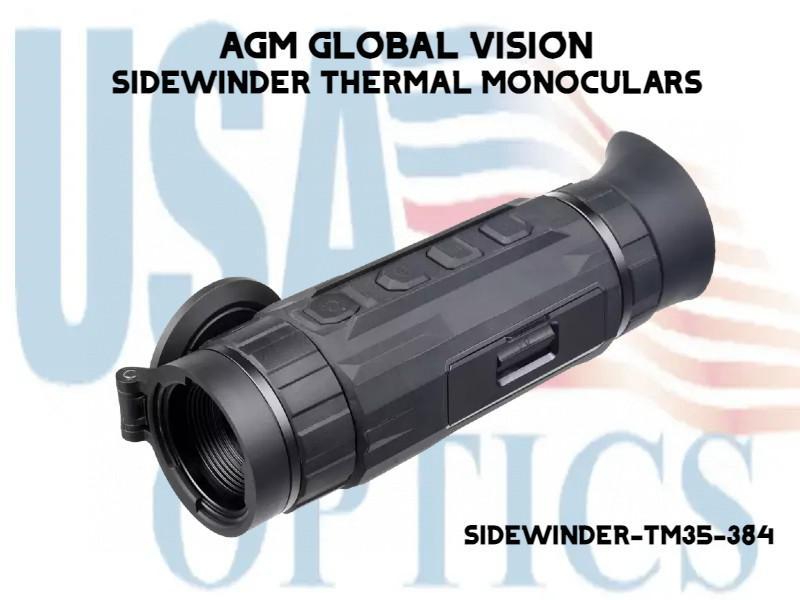

AGM, SIDEWINDER-TM35-384, SIDEWINDER THERMAL MONOCULARS

AGM, SIDEWINDER-TM35-384, SIDEWINDER THERMAL MONOCULARS

Regular price $2,075.00 USD
Regular price Sale price $2,075.00 USD
Sale Sold out
SIDEWINDER THERMAL MONOCULARS

The AGM Sidewinder Thermal Monocular series is the newest addition to what is already the most extensive thermal product assortment in the world! Sidewinder TM35-384 boasts a 35mm Germanium lens and a 384x288, 12 micron, sub-20mK thermal detector. The Sidewinder also brings many new advancements to the product category which users have been clamoring for. This handheld monocular comes equipped with the most sensitive thermal sensor on the market, providing users with a stunning advancement in image clarity and background detail. Also, this unit utilizes a removable, non-proprietary 18650 rechargeable battery which powers the unit by offering up to 7 hours of operating time, built-in to a new robust rubber armored housing for added durability and protection. The Sidewinder also comes packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: 50Hz refresh rate, 64GB of built-in memory (highest in its class), Wi-Fi compatibility to pair with the AGM Connect App, an IP67 waterproof rating, F1.0 aperture, USB Type-C port for external power capabilities, 4 color palettes and an industry-leading 5 Year Transferable Warranty. The Sidewinders are built for well-rounded use and would work great for hunting, farming/herd protection, building security, law enforcement, search & rescue, boating, camping and other general outdoors activities.

FEATURES

  • 12μm, 384×288 resolution detector
  • Highest thermal sensitivity (NETD <20mK)
  • Advanced image processing (Digital Detail Enhancement, digital Noise Reduction and NLM algorithm)
  • 50 Hz image frame rate
  • 1024×768 resolution OLED display
  • Built-in memory supports video/audio recording and snapshot capturing
  • 64 GB memory module
  • Wi-Fi hotspot
  • 1×, 2×, 4× and 8× digital zoom
  • Replaceable and rechargeable Li-Ion battery
  • Up to 7 hours continuous running
  • External power supply capability
  • Waterproof
  • 5-Year warranty


SPECIFICATIONS

  • Palettes - Black Hot, White Hot, Red Hot, Fusion
  • Dimensions - 188 × 58 × 65 mm (7.4 × 2.3 × 2.6 in)
  • Interface - USB Type-C
  • Pixel Interval - 12 μm
  • Magnification - 3× - 24×
  • Detector type - Vanadium Oxide Uncooled Focal Plane Array
  • Response Waveband - 8μm to 14μm
  • FFC (Flat Field Correction) - Auto, Manual, External Correction
  • Highest Temperature Spot Tracking - Yes
  • Standby Mode - Yes
  • Refresh rate - 50 Hz
  • Resolution - 384×288
  • Detection Range (6' object) - 1800 m
  • Lens (focal length) - 35 mm
  • Power - 5 VDC/2 A, 1.75 W
  • Field of view (H × X) - 7.5° × 5.6°
  • Digital zoom - 1×, 2×, 4×, 8×
  • Diopter adjustment range - -5 to +3 dpt
  • Monitor - 1024×768, OLED
  • Storage - Built-in memory (64 GB)
  • Record VideoYes / Yes (on-board)
  • Capture Snapshot - Yes
  • Battery Type - One 18650 Replaceable rechargeable Lithium battery
  • Wi-Fi - Yes
  • Battery Operating Time - Up to 7 hours
  • Weight - 505 g (1.11 lb)
  • Working Temperature/ Humidity - -30°C to 55°C (-22°F to 131°F)
  • Protection Level - IP67

Package Includes
  • Battery Charger
  • USB Cable
  • Power Adapter (US and EU plugs included)
  • 18650 Rechargeable Battery
  • Lens Cloth
  • Wrist Strap
  • Carrying Case
  • User Manual
  • Protective Bag
