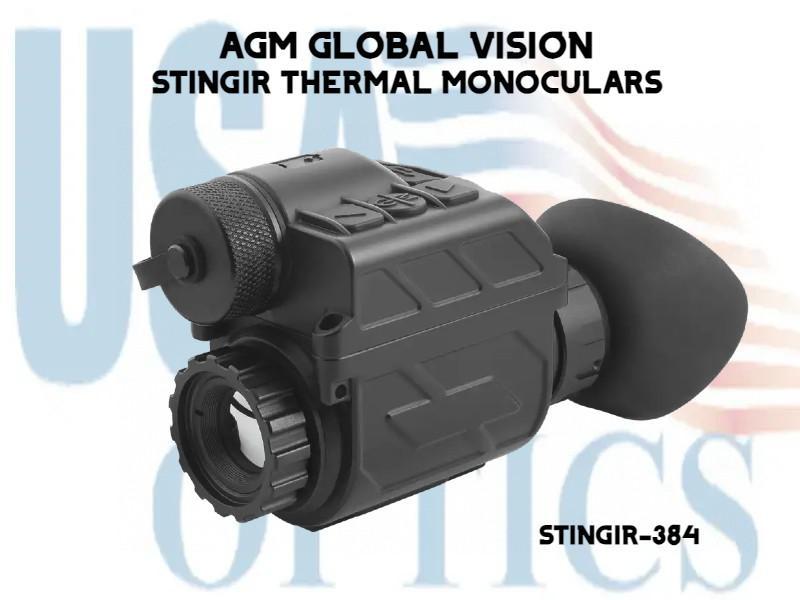

AGM, STINGIR-384, STINGIR THERMAL MONOCULARS

The StingIR 384 miniature observational thermal monocular is equipped with a 384×288, 12 micron, sub-25mK thermal detector and a high-resolution OLED display. The StingIR is a full-featured unit, weighing less than 7 ounces/200 grams. The monocular can be helmet mounted for hands-free operations, or used as a standalone handheld device. The SingIR with included weapon mounts can also be used as a stand-alone thermal scope, or thermal clip-on, making it one of our most versatile offerings.Other features include a digital compass, inclinometer, up to 4x digital zoom and the ability to be powered by two types of replaceable CR123 or 18650 batteries. The high-sensitivity built-in thermal detector provides you with a clear view in any lighting condition. The monocular is suitable for security enforcement, outdoor hunting, wilderness exploration, search and rescue and other fields.

• 12μm high-sensitivity detector
• Head- or helmet-mountable for hands-free usage
• Compact, sturdy design
• High-resolution OLED display
• Multiple thermal image palettes
• Device supports up to 8× digital zoom
• Powered by one CR123A/RCR123 or 18650 Lithium battery
• Up to 5 hours continuous running
• Digital compass and inclinometer
• Type-C interface
• 5-Year warranty

• Digital Compas - Yes
• Palette - Default, Outdoor, Arctic, or Rainforest
• Exit Pupil Diameter - 20 mm
• Digital Magnification - 1x - 4x
• Detector typ - 12 μm Uncooled VOx Microbolometer
• FFC (Flat Field Correction - Auto (1 to 10 min. interval) or Manual
• Refresh rat - 50 Hz
• Apertur - F1.3
• Resolutio - 384×288
• Lens (focal length - 16 mm
• Field of view (H × X - 16.3° × 12.3° (H × V)
• Digital zoom - 1×, 2×, 3×, 4×
• Diopter adjustment rang - -5 to +2 dpt
• Monitor - 1024×768 OLED
• Video output - PAL video output via USB port
• Battery Type - One CR123A(3V) or RCR123(3.7V) or 18650(4.2V)
• Battery Operating Time - CR123A - up to 3 hours / RCR123 - up to 2 hours / 18650 - up to 5 hours CR123A - up to 2.5 hours / RCR123 - up to 1.5 hours / 18650 - up to 4.5 hours
• External power supply - 5 VDC/2 A, 1.5 W
• Operating Temperature Rang - -10°C to 60°C (14°F to 140°F)
• Weight - 200 g (7.0 oz)
• Overall Dimensions - 140 × 70 × 50 mm (5.5 × 2.7 × 2.0 in)
• Protection Level - IP67
• Magnification - 1×

• Monocular
• Helmet adapter bracket
• Picatinny mount
• Clip-on mount
• 18650 battery cap
• USB Type-C cable
• Operation manual
• Packing Case
