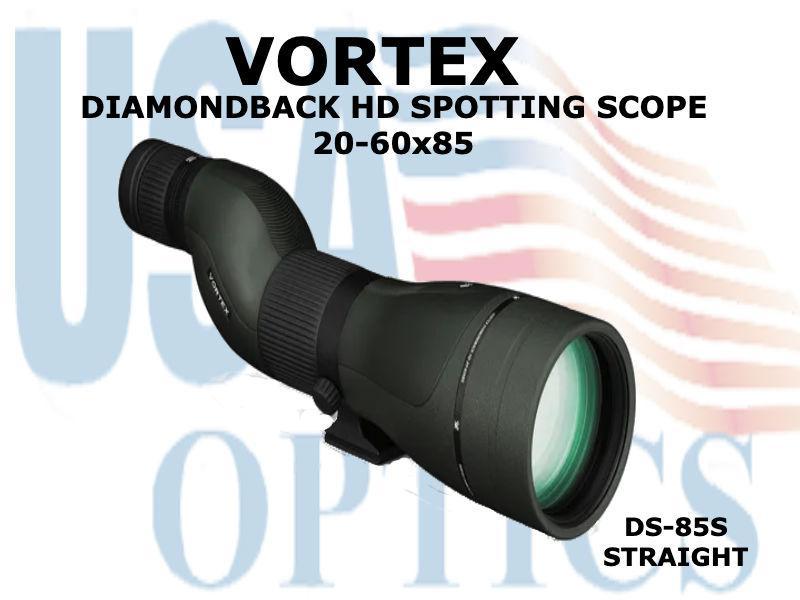

VORTEX, DS-85S, DIAMONDBACK HD 20-60x85 SPOTTING SCOPE (STRAIGHT)

Glassing out west demands an HD optic, but other systems can't get you the clarity you need to see a tail twitch in low light, or pick a tine out of dense cover. The redesigned Diamondback HD spotting scopes have all the horsepower the long-distance hunter needs, and they excel in lowlight - right when you need it most. They've also streamlined the exterior for a sleeker, snag-free profile, building in a helical focus wheel.


OPTICAL FEATURES

• HD Optical System - Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
• Fully Multi-Coated - Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

CONSTRUCTION FEATURES

• ArmorTek - Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
• Waterproof - O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
• Shockproof - Rugged construction withstands recoil and impact.
• Fogproof - Argon gas purging prevents internal fogging over a wide range of temperatures.
• Rubber Armor - Provides a secure, non-slip grip, and durable external protection.

CONVENIENCE FEATURES

• Adjustable Eyecups - Twist up and down for comfortable viewing with or without eyeglasses.
• Helical Focus - Allows for fast and fine adjustments.
• Arca-Swiss Compatible - Directly mounts to Arca-Swiss tripod heads without the use of additional plates. Also accepts 1/4-20 threads for use on alternate style tripod heads.
• Tripod Adaptable - Allowing use on a tripod or car window mount. Tripod adapter required.
• Rotating Tripod Ring - Allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles.
• Built-in Sunshade - Reduces glare and shields the objective lens from raindrops and snow.

• Magnification - 20-60x
• Objective Lens Diameter - 85 mm
• Linear Field of View - 108-60 ft/1000 yds
• Angular Field of View - 2.1-1.1 degrees
• Close Focus - 24.6 feet
• Eye Relief - 20.3-18.3 mm
• Exit Pupil - 4.25-1.41 mm
• Length - 15.75 inches
• Weight - 61.3 oz

• Neoprene cover
• Tethered objective lens cap
• Tethered ocular lens cap
• Lens cloth
