AGM, NGV-40-3APW, NIGHT VISION GOGGLES

AGM, NGV-40-3APW, NIGHT VISION GOGGLES

$8,495.00 USD
$8,495.00 USD
Sale Sold out

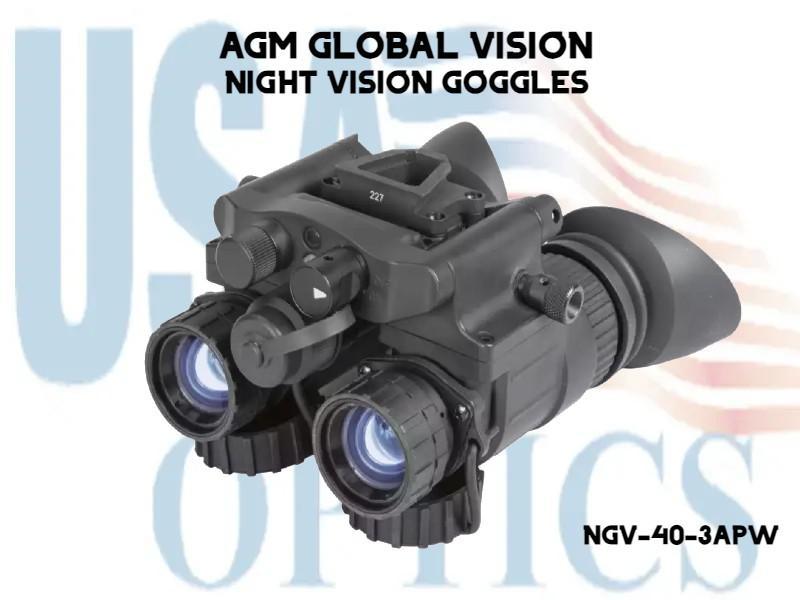

NGV-40-3APW, NIGHT VISION GOGGLES

The AGM NVG-40 is a dual-channel night vision system. The NVG is made of a compact composite
housing for durability, and features advanced multi-coated optics. The device can be outfitted with
either a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature
ensures that the high-quality photocathode tube is protected. The NVG is also equipped with Manual

Gain Control, which adjusts the image brightness, providing the highest possible image quality even in
changing light conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG can
run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount

FEATURES

  • Redundant dual-tube design
  • True stereoscopic vision
  • Lightweight & compact
  • Waterproof
  • Head or helmet mountable for hands-free operation
  • Bright light cut-off
  • Ergonomic, simple, easy to operate controls
  • Built-in Infrared illuminator and flood lens
  • Utilizes single CR123A lithium or AA battery
  • 3-Year warranty


SPECIFICATIONS

  • Image Intensifier Tube - Gen 3 Auto-Gated "White Phosphor 3APW"
  • Resolution - 64-72 lp/mm
  • Field of view cleanness by zone - Gen 3 IIT 3APW is offered with high quality and practically no visible spots in Zone 1.
  • Magnification - 1x
  • Lens System - 27 mm, F/1.3
  • FOV - 40°
  • Focus Range - 0.25 m to Infinity
  • Eye Relief - 25 mm
  • Diopter Adjustment - -6 to +2 dpt
  • Led Indicators - Low Battery IR On Excessive Light Conditions
  • Infrared Illuminator - Yes
  • Manual Gain Control - Yes
  • Bright Light Cut-Off - Yes
  • Automatic Shut-Off System - Yes
  • Battery Type - One CR123A (3V) or AA (1.5 V)
  • Battery Life (Operating) - Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)
  • Waterproof - Yes
  • Operating Temperature Range - -40°C to +50°C (-40°F to +122°F)
  • Storage Temperature Range - -50°C to +70°C (-58°F to +158°F)
  • Weight - 645 g (1.42 lbs)
  • Overall Dimensions - 115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)
  • Protection Level - IP67


Package Includes


  • Night Vision Goggles
  • Soft Carrying Case
  • Lens Cloth
  • Battery Adapter
  • User Manual
