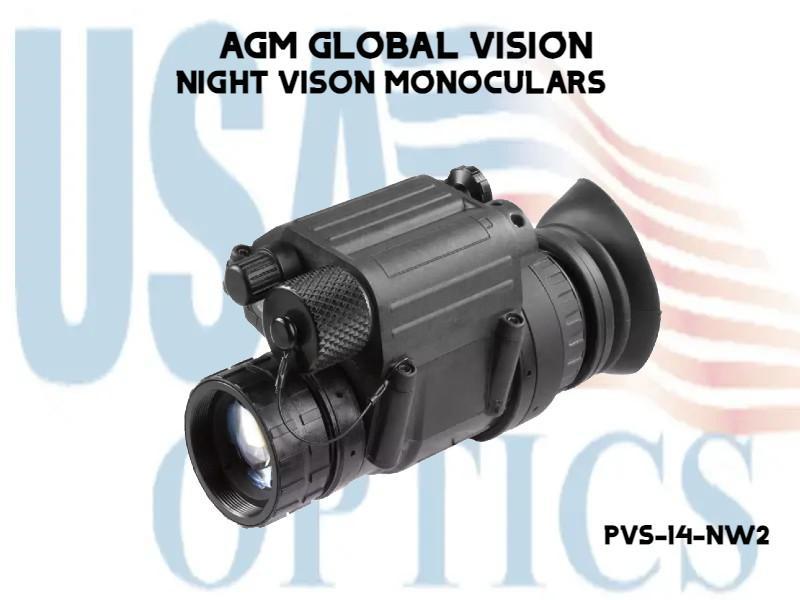

AGM, PVS-14-NW2, NIGHT VISION MONOCULARS

AGM, PVS-14-NW2, NIGHT VISION MONOCULARS

Regular price $2,695.00 USD
Regular price Sale price $2,695.00 USD
Sale Sold out
PVS-14-NW2, NIGHT VISION MONOCULARS

The AGM PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device that has repeatedly proven itself in combat. The PVS-14 design was originally commissioned by the United States Military to enable nighttime operations. This monocular is used globally in some of the most challenging environments. The PVS-14 can be used as a handheld device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets, providing night vision capabilities to daytime optical sights. The PVS-14 monocular conforms to 810G Military standards and demonstrates the highest quality form and function. The PVS-14 monocular is a full-featured unit. Weighing less than 12.4 ounces/ 350 kilograms. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. AGM’s PVS14 includes an array of optional accessories to support virtually any operation.

FEATURES

  • Compact, rugged design
  • Waterproof
  • Head or helmet-mountable for hands-free usage
  • Manual gain control
  • Ergonomic, simple, easy-to-operate controls
  • Built-in Infrared illuminator and flood lens
  • 3-Year warranty
SPECIFICATIONS

  • Image Intensifier Tube - Gen 2+ "White Phosphor Level 2"
  • Resolution - 45-57 lp/mm
  • Field of view cleanness by zone - NW2 is the second-best quality Gen 2 IIT offered by AGM, very limited number of spots in Zone 1
  • Magnification - 1x (3x and 5x optional)
  • Lens System - 26 mm; F/1.2
  • FOV - 40°
  • Focus Range - 0.25 m to infinity
  • Diopter Adjustment - -6 to +2 dpt
  • Led Indicators - Low battery; IR On; Excessive light conditions
  • Infrared Illuminator - Yes
  • Manual Gain Control - Yes
  • Bright Light Cut-Off - Yes
  • Automatic Shut-Off System - Yes
  • Battery Type - One AA Alkaline
  • Battery Life (Operating) - Up to 40 hours at 20°C
  • Operating Temperature Range - -51° C to +49° C (-60° F to 120° F)
  • Storage Temperature Range - -51° C to +85° C (-60° F to 185° F)
  • Weight - 0.35 kg (12.4 oz)
  • Overall Dimensions - 114 x 63x 69 mm (4,5 x 2,5 x 2,7 in)
                                                                          PACKAGE INCLUDES

  • Head Mount Assembly
  • Brow Pad
  • Eye Cup
  • Helmet/ Head Mount Adapter
  • System Soft Carrying Case
  • Daylight Filter
  • Shoulder Strap
  • Lens Paper
  • Diopter Lens Cap
  • Sacrificial Window
  • Demist Shields
  • Operator’s Manual
  • Battery
