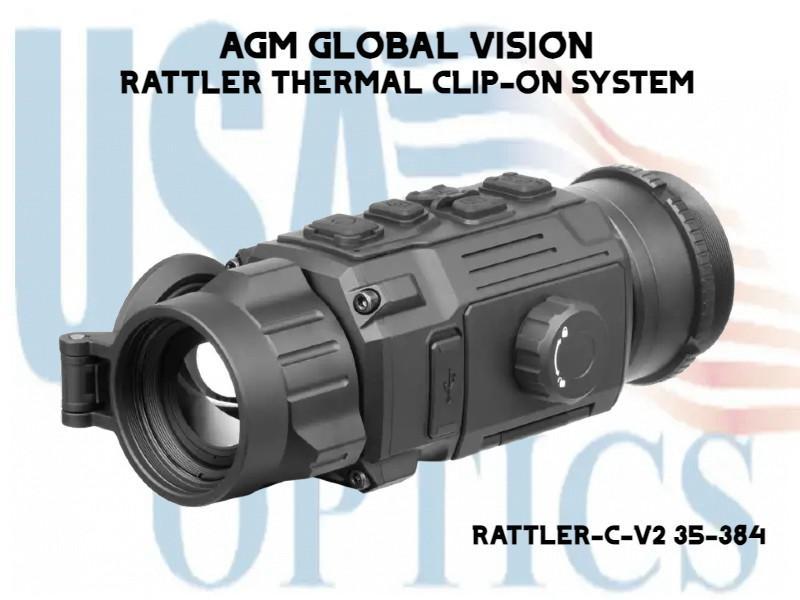

The AGM Rattler TC35-384 is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment.

The Rattler clip-on is a perfect addition to any hunter's arsenal. Equipped with a 35mm germanium lens and a 384x288 resolution high-sensitivity thermal sensor, this unit has a detection range of 1235 yards. Rattler TC provides a clear image under harsh environmental conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The product is mainly applied to scenarios such as patrolling, hunting, overwatch, etc. The Rattler TC can easily be attached in front of day scopes with magnification up to 8x for medium range use.

This unit also comes packed with all the features that many Rattler users have come to expect, which include: built-in recording and picture capture capabilities, Wi-Fi hotspot, AGM Connect app compatibility for storing and sharing images and videos, 16 GB on-board storage, 4.5 hours of battery life on two CR123 batteries, external power capability through the unit’s USB-C plug and a high-quality American Defense Manufacturing quick detach mount.


  • Quick conversion of daytime optics into thermal imaging scope
  • 384×288 thermal resolution, high sensitivity detector (NETD <35mK)
  • Image processing technology: Adaptive AGC, DDE, 3D DNR
  • 748 × 561 resolution 0.39-inch OLED display
  • 8x digital zoom
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Supports distance measurement
  • Adjustable color palettes
  • Wi-Fi data transmission
  • Waterproof, shockproof
  • Up to 4.5 hours continuous working
  • External power supply capability
  • 5-Year warranty

  • Shock and vibration - 750 g/ms
  • Detector type - 17μm, Uncooled, 50Hz
  • Standby Mode - Yes
  • Resolution - 384x288
  • Detection Range (6' object) - 1750m/yd
  • Snapshot - Yes
  • Lens system - 35 mm; F/1.0
  • Field of view (H × X) - 10.0° x 8.0°
  • Digital zoom - 2x, 4x, 8x
  • Imaging palettes - Jungle, Recognition
  • Display - Yes
  • Storage - Built-in EMMC (16 GB)
  • Video/Photo Format - Yes
  • Battery Type - Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
  • Wi-Fi - Yes
  • Battery Life (Operating) - Up to 4.5 hr
  • External power supply - 5V USB
  • Operating Temperature Range - -20°C to +55°C (-4°F to +131°F)
  • Degree of Protection - IP67
  • Weight - 0.42 kg (0.93 lb)
  • Overall Dimensions - 153.2 × 62.5 × 59.2 mm (6.03 × 2.46 × 2.33 in)
  • Magnification - 1x
                                                                                     Package Includes

  • USB Cable
  • Lens Tissue
  • User Manual
  • Carrying Case
  • CR 123 Batteries
  • Day Scope Adapter with Inserts
