AGM

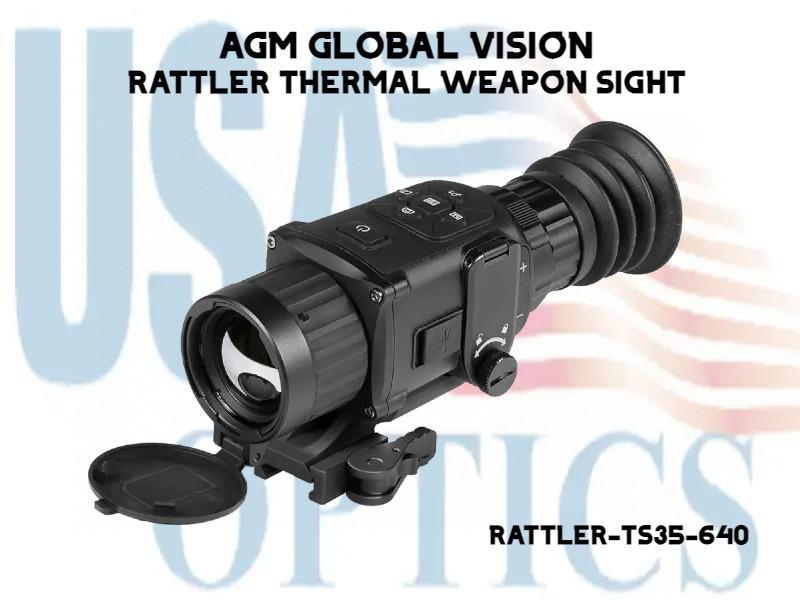

AGM, RATTLER-TS35-640, RATTLER THERMAL WEAPON SIGHTS

AGM, RATTLER-TS35-640, RATTLER THERMAL WEAPON SIGHTS

Regular price $2,995.00 USD
Regular price Sale price $2,995.00 USD
Sale Sold out
RATTLER THERMAL WEAPON SIGHTS

The Rattler TS35-640 is a perfect addition to any hunter's arsenal. Equipped with a 35mm germanium lens and a highly advanced 12-micron 640x512 thermal detector with sub-35mK sensitivity, this unit has a detection range of 1750 yards, and is highly adaptable to a wide range of shooting platforms. This unit’s 2X base magnification allows for a wide field of view, which many hog hunters prefer, as it allows them to see and track multiple animals in a group at once. The Rattler series of thermal scopes were specifically designed to be compact and lightweight, as this not only ensures its small footprint can be used on a multitude of shooting platforms, but also gives the series secondary use as a thermal monocular as well.

This unit also comes packed with all the features that many Rattler users have come to expect, which include: built-in recording and picture capture capabilities, Wi-Fi hotspot, 8X digital zoom, Picture-in-picture, AGM Connect app compatibility for storing and sharing images and videos, one-shot digital zeroing process, 4.5 hours of battery life on (2) CR123 batteries, external power capability through the unit’s USB-C plug and a high-quality American Defense Manufacturing quick detach mount which quickly allows users to seamlessly shift from riflescope to monocular quickly and easily.

FEATURES
  • 640×512 thermal resolution
  • 12 μm, 35 mK NETD high sensitivity detector (NETD <35mK)
  • Fast 50Hz imaging
  • 1024×768 resolution, 0.39-inch OLED display
  • 2x optical magnification
  • 1x, 2x, 4x, 8x digital zoom
  • Digital image processing technology
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Various reticle types and colors
  • Stadiametric rangefinder
  • Adjustable color palettes
  • Wi-Fi data transmission
  • Standby mode
  • Waterproof, shockproof
  • Up to 4.5 hours continuous working
  • External power supply capability
  • 5-Year warranty
SPECIFICATIONS

  • Magnification - 2x
  • Palettes - Black Hot, White Hot, Red Hot, Fusion
  • Reticle - 5 types, 4 colors, on/off
  • Drop Test Height - 1.5m (4.9 feet)
  • Boresight Adjustment - Digital Controlled
  • Distance Measurement - Yes (Stadiametric Rangefinder)
  • Scene Mode - Jungle, Recognition
  • Picture In Picture Mode (PIP) - Yes (2× Zoom)
  • Video Recording - Yes
  • Defective Pixels Correction (DPC) - Yes
  • Uniformity Correction - Auto, Manual, External Correction
  • Digital Magnification - 2x - 16x
  • Detector type - 12μm, Uncooled, 50 Hz
  • Standby Mode - Yes
  • Resolution - 640 × 512
  • Detection Range (6' object) - 1,750m/yd
  • Lens system - 35 mm; F/1.0
  • Field of view (H × X) - 12.5° × 10.0°
  • Digital zoom - 1×, 2×, 4×, 8×
  • Eye relief - 45 mm
  • Display - 0.39-inch, OLED, 1024×768, 50 Hz
  • Storage - Built-in EMMC (16 GB)
  • Battery Type - Two CR123 (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
  • CVBS Output - Yes (via USB)
  • Battery Life (Operating) - Up to 4.5 hr
  • External power supply - 5 VDC/2 A, USB Type-C interface
  • Operating Temperature Range - -20°C to +55°C (-4°F to +131°F)
  • Degree of Protection - IP67
  • Weight - 535 g (1.18 lb)
  • Overall Dimensions - 187× 63 × 80 mm (7.4 × 2.5 × 3.1 in)
Package Includes
  • Mount
  • Thermal Imaging Rifle Scope
  • USB Cable
  • Lens Cloth
  • User Manual
  • Carrying Bag
  • CR 123 Batteries
