AGM

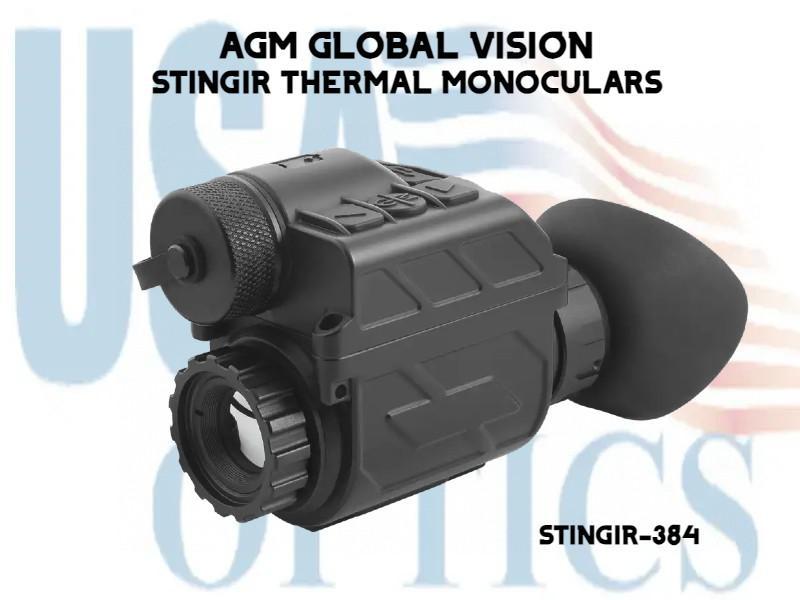

AGM, STINGIR-384, STINGIR THERMAL MONOCULARS

AGM, STINGIR-384, STINGIR THERMAL MONOCULARS

Regular price $2,395.00 USD
Regular price Sale price $2,395.00 USD
Sale Sold out
STINGIR THERMAL MONOCULARS

The StingIR 384 miniature observational thermal monocular is equipped with a 384×288, 12 micron, sub-25mK thermal detector and a high-resolution OLED display. The StingIR is a full-featured unit, weighing less than 7 ounces/200 grams. The monocular can be helmet mounted for hands-free operations, or used as a standalone handheld device. The SingIR with included weapon mounts can also be used as a stand-alone thermal scope, or thermal clip-on, making it one of our most versatile offerings.Other features include a digital compass, inclinometer, up to 4x digital zoom and the ability to be powered by two types of replaceable CR123 or 18650 batteries. The high-sensitivity built-in thermal detector provides you with a clear view in any lighting condition. The monocular is suitable for security enforcement, outdoor hunting, wilderness exploration, search and rescue and other fields.

FEATURES

  • 12μm high-sensitivity detector
  • Head- or helmet-mountable for hands-free usage
  • Compact, sturdy design
  • High-resolution OLED display
  • Multiple thermal image palettes
  • Device supports up to 8× digital zoom
  • Powered by one CR123A/RCR123 or 18650 Lithium battery
  • Up to 5 hours continuous running
  • Digital compass and inclinometer
  • Type-C interface
  • 5-Year warranty
SPECIFICATIONS

  • Digital Compas - Yes
  • Palette - Default, Outdoor, Arctic, or Rainforest
  • Exit Pupil Diameter - 20 mm
  • Digital Magnification - 1x - 4x
  • Detector typ - 12 μm Uncooled VOx Microbolometer
  • FFC (Flat Field Correction - Auto (1 to 10 min. interval) or Manual
  • Refresh rat - 50 Hz
  • Apertur - F1.3
  • Resolutio - 384×288
  • Lens (focal length - 16 mm
  • Field of view (H × X - 16.3° × 12.3° (H × V)
  • Digital zoom - 1×, 2×, 3×, 4×
  • Diopter adjustment rang - -5 to +2 dpt
  • Monitor - 1024×768 OLED
  • Video output - PAL video output via USB port
  • Battery Type - One CR123A(3V) or RCR123(3.7V) or 18650(4.2V)
  • Battery Operating Time - CR123A - up to 3 hours / RCR123 - up to 2 hours / 18650 - up to 5 hours CR123A - up to 2.5 hours / RCR123 - up to 1.5 hours / 18650 - up to 4.5 hours
  • External power supply - 5 VDC/2 A, 1.5 W
  • Operating Temperature Rang - -10°C to 60°C (14°F to 140°F)
  • Weight - 200 g (7.0 oz)
  • Overall Dimensions - 140 × 70 × 50 mm (5.5 × 2.7 × 2.0 in)
  • Protection Level - IP67
  • Magnification - 1×
Package Includes

  • Monocular
  • Helmet adapter bracket
  • Picatinny mount
  • Clip-on mount
  • 18650 battery cap
  • USB Type-C cable
  • Operation manual
  • Packing Case
