AGM

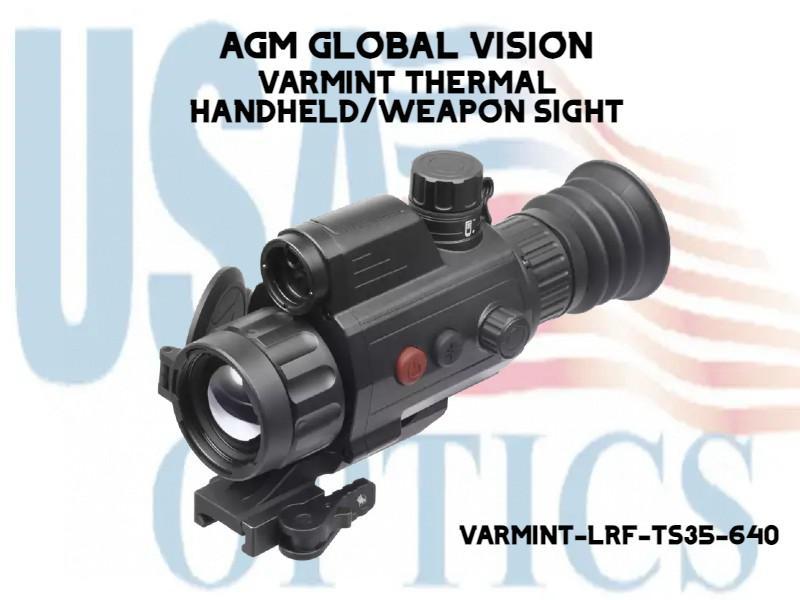

AGM, VARMINT-LRF-TS35-640, VARMINT THERMAL HANDHELD/WEAPON SIGHT

AGM, VARMINT-LRF-TS35-640, VARMINT THERMAL HANDHELD/WEAPON SIGHT

Regular price $3,995.00 USD
Regular price Sale price $3,995.00 USD
Sale Sold out
VARMINT THERMAL WEAPON SIGHT

The Varmint LRF series of thermal riflescopes from AGM utilize many of the features that shooters have come to know and love in the ever-popular Rattler product family, but with one big addition: a 600-meter integrated laser rangefinder. This feature helps alleviate a common issue many shooters find themselves experiencing when hunting with any sort of digital optic, and that is the lack of depth perception that is inherent in optics utilizing a digital screen. The Varmint LRF TS35-640 pairs that LRF functionality with a 12 micron 640x512 thermal detector, which works in conjunction with a high quality 1024x768 OLED display. The Varmint LRF is powered by a single, non-proprietary, 18650 rechargeable battery, which provides users with 4.5 hours of continuous use in the field.

The compact design of the Varmint LRF even allows some dual-use functionality as a handheld monocular as well, which helps in surveying your surroundings before the spotting and stalking has begun. This transition is made extremely easy because every Varmint LRF comes equipped with a high-quality American-made American Defense Manufacturing quick detach mount. Pairing all these physical aspects with built-in recording, Wi-Fi compatibility through the AGM Connect app, external power options through the mini USB port, multiple reticle options, multiple color palettes, and 16GB of internal storage capacity, make the Varmint LRF one of the most functionally diverse products in the AGM family. Protected by AGM’s 5 Year Transferable Warranty!

                                                                                  FEATURES

  • 12μm high sensitivity thermal detector
  • Fast 50Hz imaging
  • 1x, 2x, 4x, 8x Digital zoom
  • Adjustable color palettes
  • Built-in laser rangefinder
  • High resolution OLED display
  • Various reticle types and colors
  • On-board video recording and snapshot
  • Built-in EMMC storage (16 GB)
  • Wi-Fi data transmission
  • Standby mode
  • Up to 4.5 hours continuous runtime
  • External power supply compatibility
  • Waterproof & shockproof
  • 5-Year warranty

SPECIFICATIONS

  • Palettes - Black Hot, White Hot, Red Hot, Fusion
  • Reticle - 5 types, 4 colors, on/off
  • Drop Test Height - 1.5 m (4.9 ft)
  • Boresight Adjustment - Digital Controlled
  • Boresight Increment - 0.22 mil / 0.73 MOA
  • Scene Mode - Yes
  • Picture In Picture Mode (PIP) - Yes
  • Hotspot - Yes
  • Digital Magnification - 2x - 16x
  • Detector type - 12 μm VOx Uncooled Focal Plane Arrays
  • Response Waveband - 8 μm to 14 μm
  • FFC (Flat Field Correction) - Auto, Manual, External Correction
  • Highest Temperature Spot Tracking - Yes
  • Standby Mode - Yes
  • Refresh rate - Sensor 50Hz / OLED 50Hz
  • Aperture - F1.0
  • Resolution - 640x512
  • Laser Rangefinder - Up to 600 m, ±2 m accuracy
  • Laser Wavelength - 905 nm
  • Detection Range (6' object) - 1,750m/yd
  • Lens (focal length) - 35 mm
  • Field of view (H × X) - 12.52° × 10.03°
  • Digital zoom - 1x, 2x, 4x, 8x
  • Monitor - 1024x768, 0.39 inch, OLED
  • Eye relief - 45 mm
  • Storage - Built-in 16 GB EMMC
  • Record Video - On-board video recording
  • Capture Snapshot - Yes
  • Battery Type - One 18650 (3.7V) Lithium Rechargeable Batteries
  • CVBS Output - Yes (via USB)
  • Battery Operating Time - Up to 4.5 hours
  • Battery Capacity Display - Yes
  • External power supply - 5 VDC/2 A, USB Type-C
  • Operating Temperature Range - -20°C to 55°C (-4°F to 131°F)
  • Weight - 652 g (1.44 lb)
  • Overall Dimensions - 200 x 66 x 109 mm (7.8 × 2.6 × 4.3 in)
  • Protection Level - IP67
  • Magnification - 2x

PACKAGE INCLUDES

  • CR123A Lithium Battery
  • Remote Control
  • Video Cable
  • Operation Manual
  • Carrying Case
