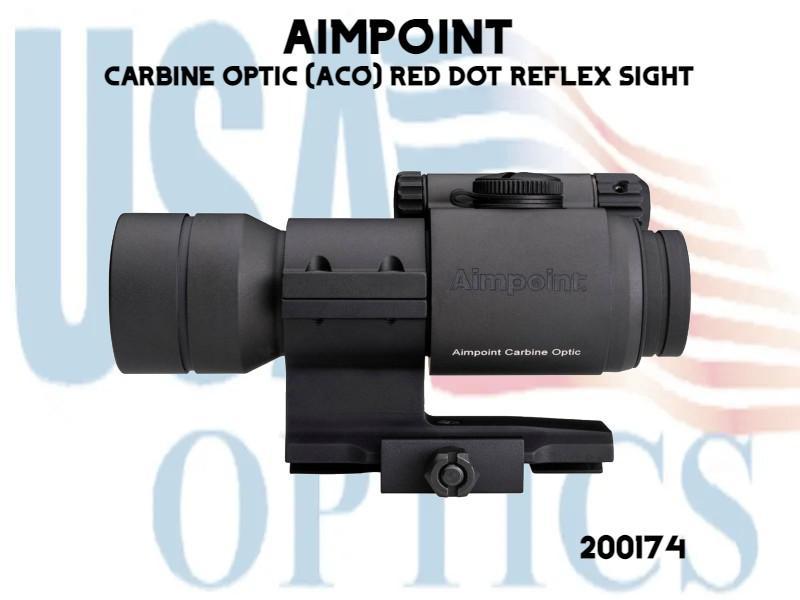

AIMPOINT, 200174, CARBINE OPTIC (ACO) RED DOT REFLEX SIGHT

The Aimpoint Carbine Optic (ACO) was designed specifically for use on modern sporting rifles, incorporating premium Aimpoint quality and features at an entry level price point. This reflex red dot sight is ready to mount and shoot directly out of the box. The military grade 30mm aluminum alloy sight tube is paired with an extremely rugged Aimpoint TMP fixed height mount. This one-piece mount sets the optical access at 39mm above the bore for an absolute co-witness with standard carbine iron sights.  The ACO is customizable with a full line of accessory options including flip covers and an anti-reflection device.


2 MOA red dot for fast target acquisition
Battery life 10,000 hours (over 1 year) of constant-on use on a single battery
Battery type: DL1/3N (included)
Fixed height mount included – providing absolute co-witness with backup iron sights
Ready to mount on a Picatinny interface directly out of the box
Full line of accessories available
Legendary Aimpoint quality and ruggedness at an entry level price point
Anodized high strength aluminum housing, semi-matte black
10 position intensity settings: 1 off, 1 extra intense for use in bright sunlight environments
1X (non-magnifying) operationally parallax free optic
Submersible to 15 Feet (5 meters)
Temperature range -20°F to +140°F (-30°C to +60°C)
Weight 6.7 oz / 190g (sight only), 10.6 oz / 300g (including mount)


OPTICAL SPECIFICATIONS

• OPTICAL MAGNIFICIATION - 1X
• AIMING DOT SIZE - 2 MOA
• DOT INTENSITY - VISIBLE AGAINST A BACKGROUND LUMINANCE OF 0.1 TO 55,000 1X
• DOT COLOR - PEAK WAVELENGTH 655 ± 15 nm
• NVD COMPATIBLE - NO
• OPTICAL COATING - ANTI-REFLEX, ALL SURFACES AND MULTI-LAYER
• CLEAR APERTURE - 23mm (.9 in)
• EYE RELIEF - UNLIMITED

POWER SOURCE

• BATTERY TYPE - 3V LITHIUM BATTERY, TYPE 2L76 OR DL1/3N
• BATTERYY LIFE/DAY TIME USE - 10,000 HOURS (OVER 1 YEAR OF CONTINUOUS USE)
• POWER INTENSITY - 10 POSTITIONS 1 OFF, 9 DAYLIGHT OF WHICH 1 EXTRA BRIGHT

SIZE (LxWxH)

• SIGHT 120mm X 55mm X 55mm / 4.8in X 2.2in X 2.2in

WEIGHT

• SIGHT (INCLUDING BATTERY) 190g / 6.7oz

• AR-15 READY MOUNT
• DL1/3N BATTERY
• MICRO TOOL
