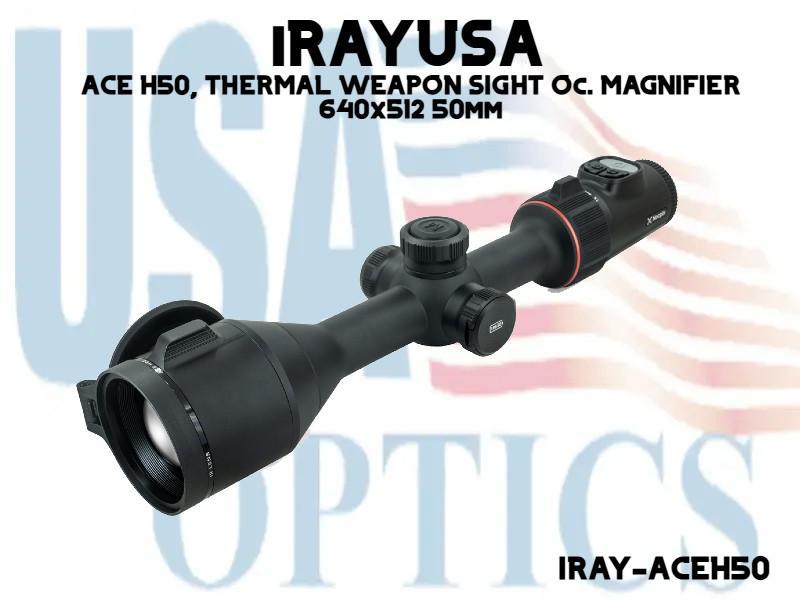

iRAYUSA, IRAY-ACEH50, THERMAL WEAPON SIGHT Oc. MAGNIFIER 640x512 50mm

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image.



• A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
• High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
• Simplified controls offer improved ergonomics and a better user experience in the field.
• Uses common 18650 style rechargeable batteries.
• Charge through the unit with a unique lock-out USB-C port design.

OPTICS

• Display Type - AMOLED
• Eye Relief - 50mm
• Objective Focal Length - 50mm
• Digital Magnification - 8X
• Diopter Range - -5 to +5
• Vertical Angular Field of View - 7°
• Horizontal Angular Field of View - 8.8°
• Focusing Mechanism - Manual Focus
• Objective F# - 0.9
• Objective Diameter - 50mm
• Objective Lens Material - Germanium
• Display Resolution - 2560×2560
• Detection Range - 2850 Yards
• Optical Magnification- 3X

PERFORMANCE

ENVIRONMENTAL
PHYSICAL
SENSOR
