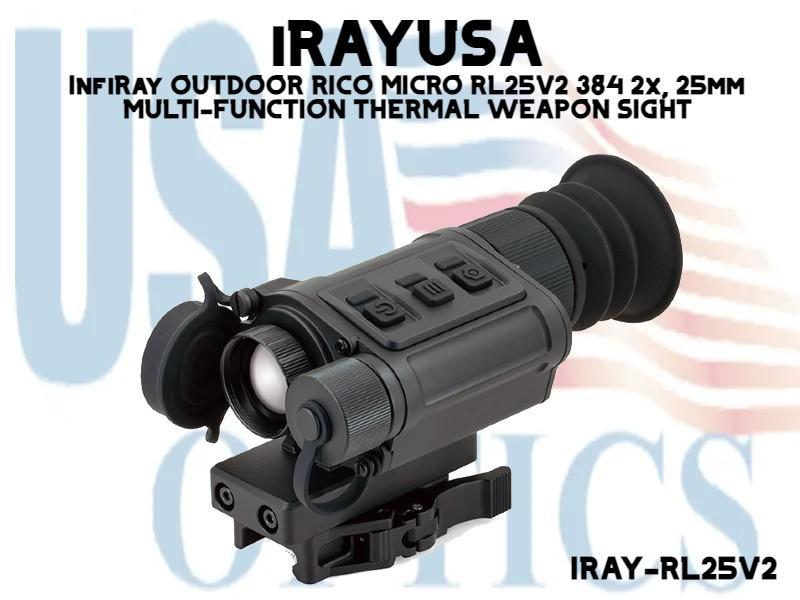

iRAYUSA, IRAY-RL25, InfiRay OUTDOOR RICO MICRO RL25 384 2x, 25mm MULTI-FUNCTION THERMAL WEAPON SIGHT

The RICO MICRO Series is an advanced electro-optic device miniaturized to deliver remarkably versatile functionality: Handheld, helmet mount, and weapon mount. Weighing less than a pound, the MICRO will fit in the palm of your hand and can be used with standard dovetail helmet mounts or rifle-mounted as a stand-alone weapon sight. InfiRayOutdoor is blazing a new trail with features never-before-seen in a helmet-mounted thermal, such as onboard recording, onboard video play-back, and a high definition AMOLED display. The RL25 also features InfiRay’s latest high-performance 384×288, 12 μm sensor technology, MATRIX III processing, and a manual-focus f/1.0 objective lens to create an image that is unlike anything in its class.


OPTICS

• Optical Magnification - 2X
• Digital Magnification - 4X
• Objective Lens Material - Germanium
• Horizontal Angular Field of View - 10.5°
• Vertical Angular Field of View - 7.9°
• Detection Range - 1375 Yards
• Objective Focal Length - 25mm f/1.0
• Objective Diameter - 25mm
• Objective F#  -  1.0
• Focusing Mechanism - Manual Focus
• Eye Relief - 35mm
• Display Type - AMOLED
• Diopter Range - -4 - +4
• Display Resolution - 1024×768

• Reticle - 7
• Connector Type - Data Cable with USB, BNC, and 7-Pin Connectors
• Color Palettes - White Hot, Black Hot, Red Hot, Color
• User-Updatable Firmware - Yes
• Mobile App - Yes
• Storage Capacity - 64gb
• Connector Output - Analog
• Picture-in-Picture - No
• One-Shot Zero - No
• Stand-by Mode - Yes
• Rangefinder - No
• Run Time - 4 Hours
• Power Source - 18650 Rechargeable
• Wifi - Yes
• Onboard Recording - Video and Image
• Image Capture - Yes
• Video Output - Analog RS-170/NTSC
• Startup Time - <10 Seconds, Instant from Standby
• External Power Source - Yes, 7-Pin to USB 5V
• Warranty - 5 Years
• Country of Manufacture - China

ENVIRONMENTAL

• Operating Temperature Range - -4°F to 122°F
• Recoil Rating - 1000 g/s² (300 Win./7mm Mag)
• Ingress Protection - IP67
• PHYSICAL
• Mounting Interface - MUM rail/Picatinny STD-1913 rail, PICTAIL optional
• Housing Material- Aluminum
• Length - 4.52 in
• Height - 2.55 in
• Width- 1.88 in
• Weight - 12.7 oz

SENSOR

• Device Technology - Thermal Imaging
• Sensor Type - InfiRay MICRO II
• Sensor Resolution - 384×288
• Non-Uniformity Correction (NUC) - Manual, Automatic, Semi-Automatic
• Spectral Response - 8-12 Microns
• Sensor Frame Rate - 50hz
• Sensor Pixel Size - 12μm
• Thermal Sensitivity - <50mk
