IRAYUSA

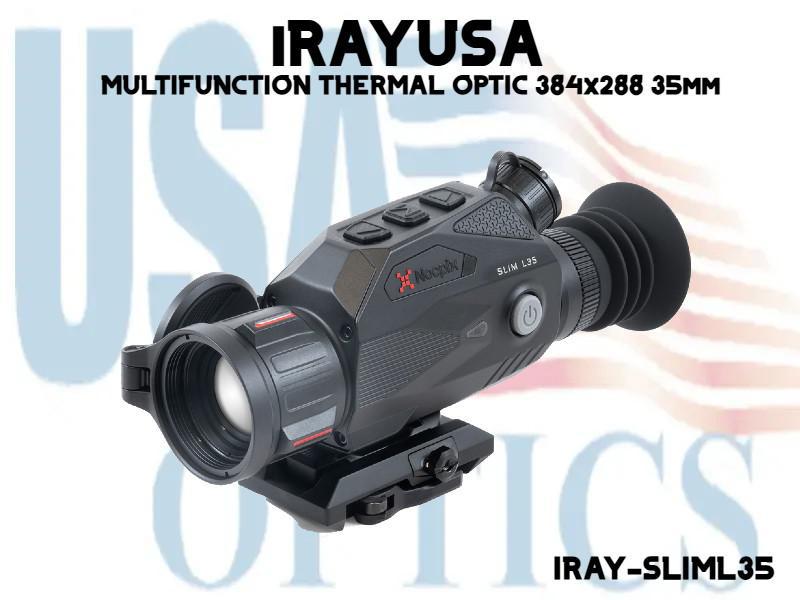

iRAYUSA, IRAY-SLIML35, MULTIFUNCTION THERMAL OPTIC 384x288 35mm

iRAYUSA, IRAY-SLIML35, MULTIFUNCTION THERMAL OPTIC 384x288 35mm

Regular price $1,999.00 USD
Regular price Sale price $1,999.00 USD
Sale Sold out
MULTIFUNCTION THERMAL OPTIC 384x288 35mm

The new SLIM series from Nocpix provides the best value and features in a compact optic. Focused on versatility and ease of use, SLIM models can be used as either a handheld monocular or a weapon sight. With the included proprietary quick-detach mounting system a hunter can quickly scan and then re-attach the optic to the rifle while maintaining zero. A magnesium alloy body and quiet, soft-touch buttons provide excellent ergonomics in both handheld and weapon-mounted configurations. The included IRB-2 batteries (flay-top 18650 style cell) are easy to swap–letting you stay out longer with the ability to charge through the optic using a magnetic cable. Generous eye relief and a 1024×768 AMOLED display provide a comfortable and highly detailed viewing and hunting experience.
  • Ambidextrous one-handed design for easy use as a handheld monocular or weapon sight.
  • Recoil-activated video automatically records footage before and after a shot.
  • High-contrast 1024×768 AMOLED display provides increased clarity and detail.
  • Quick-release dual-throw mount with a magnetic alignment aid provide fast and secure return-to-zero (1-MOA) weapon mounting.
  • Uses common 18650 style rechargeable batteries
  • Available in high and standard-resolution models
  • Quick, secure charging via the magnetic charging port
SPECIFICATIONS

OPTICS
  • Objective Focal Length - 35mm
  • Detection Range - 1750 Yards
  • Optical Magnification - 3.5X
  • Digital Magnification - 4x
  • Objective Lens Material - Germanium
  • Horizontal Angular Field of View - 7.5°
  • Vertical Angular Field of View - 5.7°
  • Objective Diameter - 35mm
  • Objective F# - 1.0
  • Eye Relief - 48mm
  • Diopter Range - -5 to +5
  • Focusing Mechanism - Manual Focus
  • Display Type - AMOLED
  • Display Resolution - 1024×768
PERFORMANCE
  • Reticle - 8 (1 Dynamic, 6 Static, 1 DIY)
  • Color Palettes - White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian
  • Stand-by Mode - Yes
  • Picture-in-Picture - Yes
  • Storage Capacity - 32GB
  • Connector Output - Power/Data
  • User-Updatable Firmware - Yes
  • Mobile App - Yes
  • One-Shot Zero - Yes
  • Connector Type - USB-C
  • Wifi - Yes
  • Onboard Recording - Yes
  • Image Capture - Yes
  • Video Output - Yes
  • Power Source - USB-C External, 18650 Battery
  • Run Time - 4+
  • External Power Source - USB-C
  • Warranty - 5 Years
  • Startup Time - <10 Seconds, Instant from Standby
  • Country of Manufacture - China
ENVIRONMENTAL
  • Operating Temperature Range - -4°F~122°F
  • Recoil Rating - 1000 g/s² (300 Win./7mm Mag)
  • Ingress Protection - IP67
PHYSICAL
  • Length - 8.50
  • Width - 2.99
  • Height - 1.81
  • Weight - 18.70
  • Housing Material - Magnesium Alloy
  • Mounting Interface - QD Picatinny
SENSOR
  • Device Technology - Thermal Imaging
  • Sensor Type - Nocpix 384
  • Sensor Resolution - 384×288
  • Sensor Pixel Size - 12μm
  • Sensor Frame Rate - 50hz
  • Thermal Sensitivity - <18mk
  • Non-Uniformity Correction (NUC) - Manual, Automatic, Semi-Automatic
