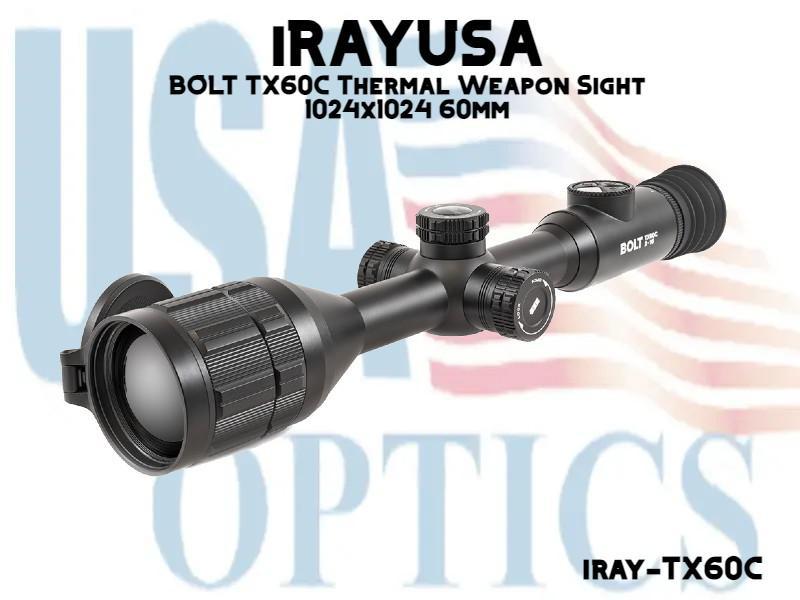

iRAYUSA, IRAY-TX60C, BOLT TX60C Thermal Weapon Sight 1024x1024 60mm

The BOLT TX60C provides hunters with a high-resolution 1024×1024 InfiRay Micro II thermal sensor at a native 3× magnification and digital zoom up to 16×, ideal for predator hunting and longer-range shots. Increased resolution paired with a higher base magnification means less resolution is lost at higher zoom levels. A fast f/1.0 germanium objective lens, a sensitivity rating of ≤18mK, and a round 2560×2560 AMOLED display provide exceptional detail and precision. The round 30mm body design allows for easy mounting with the included one-piece cantilever mount or standard scope rings. Wirelessly paired with the ILR-1200-1 Laser Rangefinding module, the TX60C is capable of displaying real-time ranges on-screen and even calculating a firing solution using customizable projectile data and the onboard ballistic calculator.

The TX60C comes with a 30 mm one-piece quick-detach scope mount with dual-locking levers (AC112) to mount the scope on any rifle with a Picatinny rail. The QD design makes it easy to swap out your thermal optic with a day scope, or share one thermal on multiple rifles.

As an evolution from previous BOLT series models, the TX60C can now directly accept common 18650 cell batteries (button-top version) without an extension/adapter.

                                                                           SPECIFICATIONS

OPTICS

• Objective Focal Length - 60mm
• Detection Range - 2700 Yards
• Optical Magnification - 3X
• Digital Magnification - 4X, stepped
• Horizontal Angular Field of View - 11.7°
• Objective Lens Material - Germanium
• Vertical Angular Field of View - 11.7°
• Objective Diameter - 60mm
• Objective F# - 1.0
• Focusing Mechanism - Manual Focus
• Eye Relief - 50mm
• Diopter Range - -5 - +3.5
• Display Type - AMOLED
• Display Resolution - 2560×2560

PERFORMANCE

• Reticle - 7 (1 Dynamic, 5 Static, 1 DIY)
• Color Palettes - White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
• Rangefinder - Bluetooth ILR-1200-1 LRF (Optional)
• Stand-by Mode - Yes
• Picture-in-Picture - Yes
• Image Capture - Yes
• Wifi - Yes
• Mobile App - Yes
• User-Updatable Firmware - Yes
• Connector Type - USB-C
• Connector Output - Power/Data
• Storage Capacity - 128GB
• Onboard Recording - Yes
• Power Source - USB-C External, 18650 Battery
• Run Time - 8+
• External Power Source - USB-C
• Warranty - 5 Years
• Startup Time - <10 Seconds, Instant from Standby
• Country of Manufacture - China

ENVIRONMENTAL

• Operating Temperature Range - -4°F~122°F
• Ingress Protection - IP67
• Recoil Rating - 1000 g/s² (300 Win./7mm Mag)

PHYSICAL

• Length - 15.12
• Weight - 35.27 Oz
• Height - 3.03
• Width - 4.09
• Mounting Interface - Picatinny MIL-STD 1913 Rail
• Housing Material - Aluminum

SENSOR
