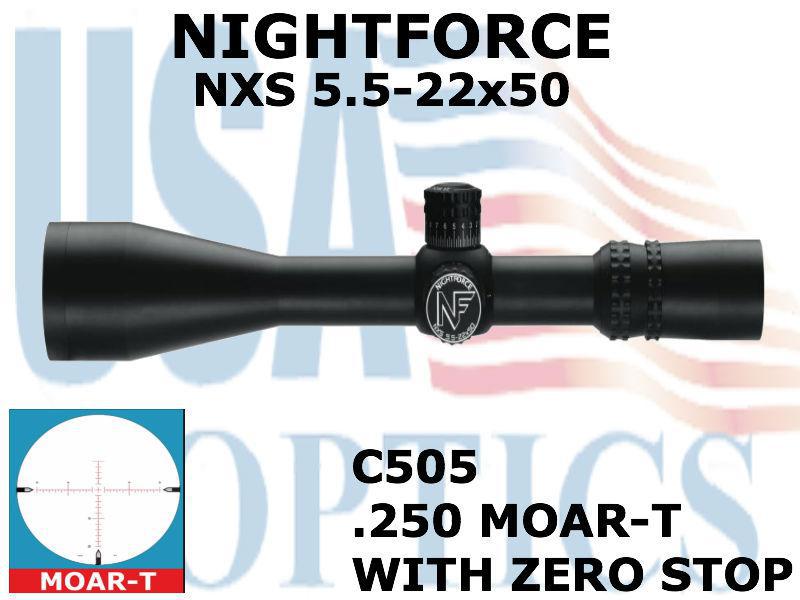

NIGHTFORCE, C505, NXS - 5.5-22x50mm - ZeroStop - .250 MOA - Center Only Illumination - MOAR-T

Originally developed for the U.S. military's extreme long range shooting and hard target interdiction, both 5.5-22 Nightforce NXS models provide a broad magnification range, four inches of eye relief and 100 MOA of elevation travel. These characteristics, combined with the extreme ruggedness and reliability of every Nightforce riflescope, make them ideal for even the largest calibers. The slim profile of the NXS 5.5-22 x 50 makes it easily adaptable to a wide range of mounting systems. Its superb resolution at high magnification opens an entirely new world of extended range shooting for the accomplished marksman; Nightforce shooters are now accurately reaching to 2000 yards and beyond.

• Focal Plane - Second
• Magnification Range - 5.5-22x
• Objective lens diameter - 50mm
• Tube diameter - 30 mm/1.18 in
• Internal adjustment range (MOA/Mil)
  • e: 100 MOA
  • w: 60 MOA
  • e: 27.3 Mil
  • w: 16.4 Mil
• Click value
  • .250 MOA
  • .1 Mil-rad
• Calibrated Ranging Power - 22x
• Parallax adjustment - 50 yd - ∞
• Exit pupil diameter
  • 5.5x: 9.1 mm
  • 22x: 2.3 mm
• Eye relief - 95 mm/3.7 in
• Field of view @100 yards/100 meters
  • 5.5x: 17.5 ft
  • 22x: 4.7 ft
  • 5.5x: 5.3 m
  • 22x: 1.4 m
• Objective outer diameter - 59 mm
• Eyepiece outer diameter - 43 mm
• Overall length (inches/mm) - 15.1 in/384 mm
• Weight (ounces/grams) - 31 oz/879g
• Mounting length (inches/mm) - 6.6 in/168 mm
• Front/Rear Mounting Length - 2.83 in/2.09 in
• PTL (Power Throw Lever) - Accessory
• Illumination - Analog
• Elevation Feature - Zero Stop

Nightforce customers asked for a finer version of the MOAR reticle for even more precision at extreme ranges, and the new MOAR-T delivers. .0625 MOA lines, with 1 MOA elevation and windage markings. Allows accurate rangefinding and holdover estimation at the longest distances. Center Illumination only.
