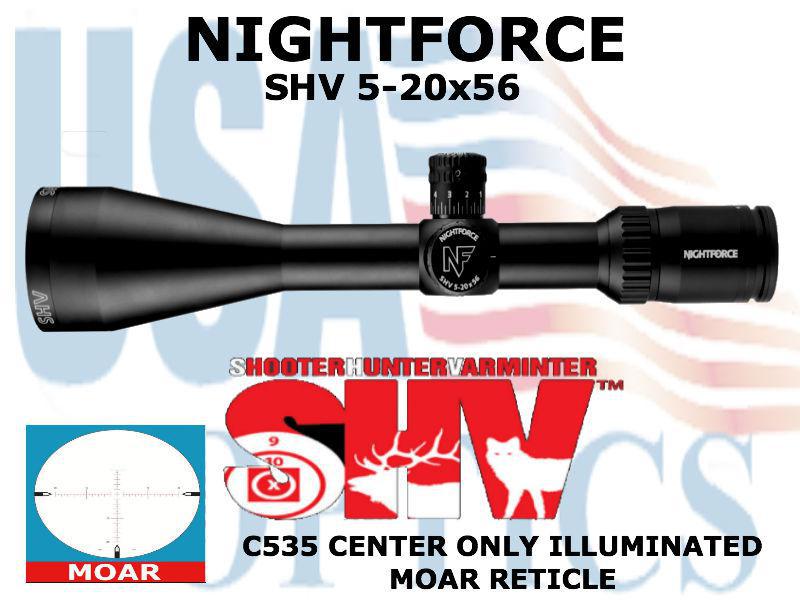

NIGHTFORCE, C535, SHV 5-20x56mm - ZeroSet - .250 MOA - Center Only Illumination - MOAR
NIGHTFORCE, C535, SHV 5-20x56mm - ZeroSet - .250 MOA - Center Only Illumination - MOAR
Regular price
$1,345.00 USD
Regular price
Sale price
$1,345.00 USD
Unit price
per
SHV 5-20x56 RIFLESCOPE - .25MOA - MOAR - Center Only Illumination
The most powerful of our SHV series performs beautifully at both close and extended ranges on varmints, big game, and for making tight groups on paper.
You get outstanding clarity, crispness and color contrast at every magnification setting. It features a full 80 MOA of elevation adjustment, side parallax adjustment and ZeroSet technology which allows a quick return to your initial zero setting, regardless of how many elevation adjustments you’ve made.
It’s tough, reliable and big calibers won’t bother it. The SHV 5-20×56 won’t bother your finances too much, either.
SPECIFICATIONS
- Focal Plane - Second
- Magnification Range - 5-20x
- Objective lens diameter - 56mm
- Tube Diameter - 30 mm/1.18 in
- Internal Adjustment Range (MOA/Mil)
- e: 80 MOA
- w: 50 MOA
- e: 21.8 Mil
- w: 13.6 Mil
- Click value - .250 MOA
- Calibrated Ranging Power - 20x
- Parallax adjustment - 25 yd - ∞
- Exit pupil diameter
- 5x: 8.7 mm
- 20x: 2.5 mm
- Eye relief - 80-90 mm/3.15-3.54 in
- Field of view @100 yards/100 meters
- 5x: 17.9 ft
- 20x: 5.0 ft
- 5x: 5.46 m
- 20x: 1.52 m
- Objective Outer Diameter - 65 mm
- Eyepiece Outer Diameter - 43 mm
- Overall Length (inches/mm) - 15.2 in/386 mm
- Weight (ounces/grams) - 29.1 oz/825g* 30.5 oz/865g**
- Mounting Length (inches/mm) - 6.5 in/165 mm
- Front/Rear Mounting Length - 2.81 in/2.04 in
- PTL (Power Throw Lever) - Accessory
- Elevation Feature - ZeroSet
RETICLE
With 1 MOA elevation and windage markings, .140 MOA lines, more accurate range finding and hold-offs are possible on smaller targets at longer ranges. Combined with a floating center crosshair, this makes for a reticle extremely fast and easy to use in the field. This reticle features center illumination only, and a 30 MOA scale below center.
