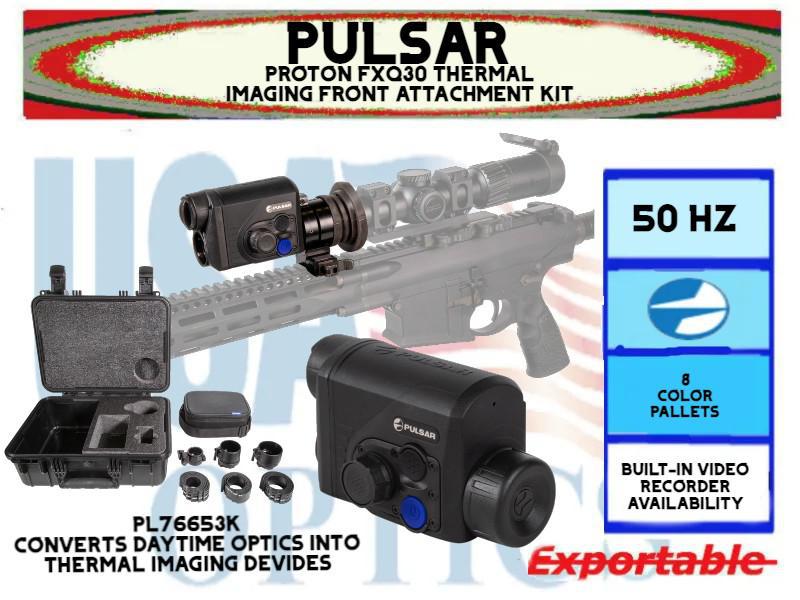

PULSAR, PL76653K, PROTON FXQ30 THERMAL IMAGING FRONT ATTACHMENT

PULSAR, PL76653K, PROTON FXQ30 THERMAL IMAGING FRONT ATTACHMENT

$3,299.97 USD
$3,299.97 USD
Sale Sold out
PROTON FXQ30 THERMAL IMAGING FRONT ATTACHMENT KIT

Convert your daytime optics into thermal imaging devices with the PROTON XQ30! This new thermal imaging attachment from Pulsar easily transforms your daytime scope into a fully functional thermal sight! As soon as the sun sets, the time comes for the Pulsar Proton FXQ30. With this new compact thermal front attachment, it takes minimumal effort for your daytime scope to transform into a ready-to-use thermal sight, with no need for additional zeroing. It is lightweight and compact, when you are out stalk hunting every gram counts. With the lightweight and compact Proton FXQ30, you will not only avoid burdening yourself, but also retain the rifle and scope balance you are used to.

FEATURES

  • Maintain zeroing - Proton FXQ30 is attached to the daytime scope with the help of the Pulsar's PSP (Precise Screen Positioning) adapter. After mounting and adjusting the Proton for the first time, you don't need to adjust it again. The PSP adapter allows for extremely quick mounting of Proton on and off the scope, while the precise screen positioning mechanism ensures the display with thermal image is ideally centered within the scope's field of view. The layout of optical and electrical components in combination with extremely accurate optical and firmware alignment enables the hunter to avoid any additional compensation or adjustments due to the front attachment "sitting" in front of the scope's objective lens.
  • Versatility - Proton FXQ30 works best with 1.5-4x magnification and with the PSP-adapter, you can attach it to scopes with a lens diameter between 40mm and 56mm. This means you can use Proton with most popular scopes, such as 1.5-6x42, 2-8x42, 3-9x40, 2-12x50, 3-12x56. And if you find yourself in need of a spotting scope, you can transform your front attachment into a thermal monocular in mere seconds, by simply unmounting your Proton from the daytime scope and connecting it to a Pulsar 530 B monocular.
  • Ease of use - The Proton's modern thermal objective lens does not require focusing. Both target and background will be in focus as close as 15 meters away. All control buttons are within reach on this compact device. Moreover, the optional Bluetooth remote control lets you forget about them altogether. You can comfortably attach the remote control to the gunstock duplicating the front attachment control.
  • Premium functionality - Despite its small size, the Proton FXQ30 houses premium class components and functionalities:
    • Highly sensitive 384x288 px @ 17 µm sensor with NETD <40 mK
    • Shock proof magnesium alloy body w/ waterproof rating of IPX7 & recoil rated up to .375 H&H, 12-Gauge & 9.3x64
    • Integrated photo and video recorder with 16 GB internal memory
    • HD AMOLED display
    • 8 color pallets
    • Integration with iOS and Android devices
SPECIFICATIONS

ELECTRONIC COMPONENTS
  • Type of Microbolometer - Uncooled Microbolometer
  • Frame Rate, Hz - 50
  • Microbolometer Resolution, Pixels - 385x288
  • Pixel Pitch, µm - 17
  • NETD,mK - <40
  • Display Type - AMOLED
  • Display Resolution, pixels - 1024x768
  • Built-In Video Recorder Availability - Yes
  • Built-In Memory, Gb - 16
  • Format of Video Clip - mpeg (h.264)
  • Resolution of Video Clip - 864x646
  • Format of Photo Files - jpeg
  • Resolution of Photo Files - 864x646
  • Video IN / OUT Availability - No
  • Max Capacity of Memory Card - >100k
  • Approximate Capacity of Memory Card, Minutes/Gb - 650
  • USB, Type - USB Type-C
  • Defective Pixel Repair Option - Yes

OPTICAL CHARACTERISTICS
  • Magnification of the Monocular, x - 5
  • When Used With a Daylight Optical Device - 1
  • Recommended Magnification of Daylight Optics, x - 1.5-4
  • Lens Diameter, mm - 28
  • Lens Focus, mm - 30
  • Relative Apperture, D/f' - 1/1,2<
  • Field of View,°, Horizontal*Vertical - 12.4
  • Field of View m@100m, Horizontal - 21.8
  • Minimum Focusing Distance, m - 15
  • Focusing Type of Distance - Fixed

RANGE OF DETECTION
  • Range of Detection, m (Object = 1,7*0,5m) - 900

POWER SUPPLY
  • Power Supply - 4,3-3,0
  • Battery Type - Li-Ion 21700
  • Battery Life, Hour - 6
  • External Power Supply - 5V (Type-C)

PHYSICAL & OPERATIONAL CHARACTERISTICS
  • Lens Material - Chalcogenide
  • Body Material - Magnesium Alloy
  • Operating Temp, °C - -0.5
  • Level of Protection (acc. to IEC 60529) - IPX7
  • Waterproofness - Yes
  • Calibration - Auto, Semi-Auto, Manual
  • Shockresistance on Rifled Weapon, J - 6000
  • Shockresistance on the Shotgun (Calibres) - 12
  • Mounting Options - Weaver/Adapter 42, 50, 56 mm
  • Length, mm - 119
  • Width, mm - 58
  • Height, mm - 75
  • Weight (Without Batteries), kg - 0.35
WHATS IN THE BOX

  • PROTON HARD CASE
  • THERMAL IMAGING FRONT ATTACHMENT
  • PSP-V WEAVER RAIL ADAPTER
  • PSP-42 RING ADAPTER
  • PSP-50 RING ADAPTER
