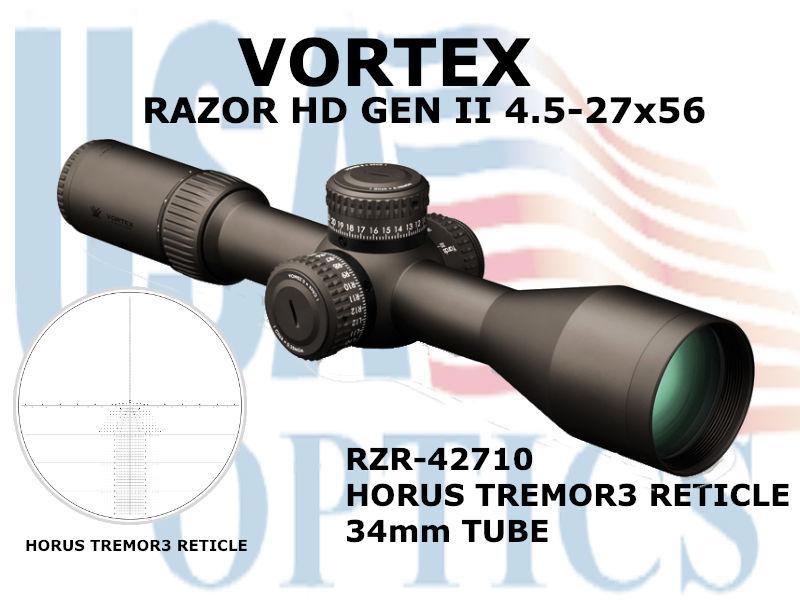

VORTEX, RZR-42710, RAZOR GEN II 4.5-27x56 TR3 MRAD

The clear choice for hardcore precision, tactical and competition shooters looking for the optimal combination of features and optical quality. The Razor HD Gen II provides long-range shooters the advanced features needed to perform at the highest level, including locking turrets, the integrated L-Tec zero stop and a first focal plane reticle for when shots need to be taken quickly from any magnification.


OPTICAL FEATURES

• HD Optical System - Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
• XR Plus Lens Coatings - Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
• Plasma Tech - Cutting edge application process provides unparalleled coating durability and performance.
• APO (Apochromatic) - Index-matched lenses correct color across the entire visual spectrum.
• Plasma Tech - Cutting edge application process provides unparalleled coating durability and performance.
• Optically Indexed Lenses - Optimized image sharpness and brightness from edge to edge.
• First Focal Plane (FFP) - Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
• Glass-etched Reticle - Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
• Illuminated Reticle - Provides precise aiming under low-light conditions.

CONSTRUCTION FEATURES

• Tube Size - 34 mm diameter provides maximized internal adjustment and strength.
• Single-Piece Tube - Maximizes alignment for improved accuracy and visual performance while ensuring strength and waterproofness.
• Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
• Tube Size (34mm) - O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
• ArmorTek - Ultra-hard exterior lens coatings defend against scratches, oil and dirt.
• Argon Gas Purged - Gas purged and o-ring sealed for superior fogproof and waterproof performance in the most extreme conditions.
• Shockproof - Designed to withstand the highest levels of recoil and impact.
• Waterproof - Designed to withstand harsh weather conditions.
• Fogproof - Designed to withstand a wide range of temperatures.
• L-Tec Turrets - Integrated locking mechanism prevents accidental adjustments. Turrets provide fast, accurate, easily read elevation and windage adjustments. Patent pending.
• External Rotation Indicator - Provides quick visual and tactile reference of elevation turret's rotational position.
• Locking Illumination - Locks illumination at preferred setting.
• Side Focus - Provides optimal image focus and parallax removal. Located on the left side of the turret housing making it easily accessible from shooting position.

INTERNAL MECHANISM DESIGN FEATURES

• L-Tec Zero Stop - Rugged steel components allow fast, sure return to the original zero point when large, multi-revolution elevation corrections have been dialed. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials - even when setting the zero stop position. Note: The turrets will allow a slight over travel for shooters who occasionally need to dial down below their zero.
• Maximized Turret Zero Adjustment - Turret design allows expanded adjustment range when L-Tec zero stop feature is disengaged for zeroing purposes.
• Micro Adjust Zero Setting - Infinite zero setting positions allow zero to be set between clicks for optimal accuracy.
• Friction Reduction System - Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability.
• Sub-2 Micron Tolerant Turret Screws - Provides low-friction, wear-resistant performance. Precision machined to sub-2 micron tolerances and treated with an advanced dry-film lubricant for ultra-smooth operation and adjustments.
• Erector Tube System - Precision-machined from aircraft-grade aluminum with anti-galling properties for a lighter weight, stronger, more durable tube. Stainless steel offset coil spring erector biasing system withstands higher stresses, allowing more internal elevation and windage travel with better freedom of movement for the ultimate turret precision.

CONVENIENCE FEATURES

• Fast Focus Eyepiece - Allows quick and easy reticle focusing.
• L-Tec Tool - Included with your scope for precise adjustments to the turret.
• Locking Side Illumination - Easily accessible and lockable illumination dial is located on the left side of turret housing.

• Magnification - 4.5-27 x
• Objective Lens Diameter - 56 mm
• Eye Relief - 3.7 inches
• Field of View - 25.3-4.4 feet/100 yards
• Tube Size - 34 mm
• Turret Style - L-Tec
• Adjustment Graduation - 0.1 MRAD
• Travel per Rotation - 10 MRAD
• Max Elevation Adjustment - 28.5 MRAD
• Max Windage Adjustment - 10 MRAD
• Parallax Setting - 32 yards to infinity
• Length - 14.4 inches
• Weight - 48.5 ounces

• 4-inch sunshade
• 2mm hex wrench
• CR2032 battery
• Lens cloth
