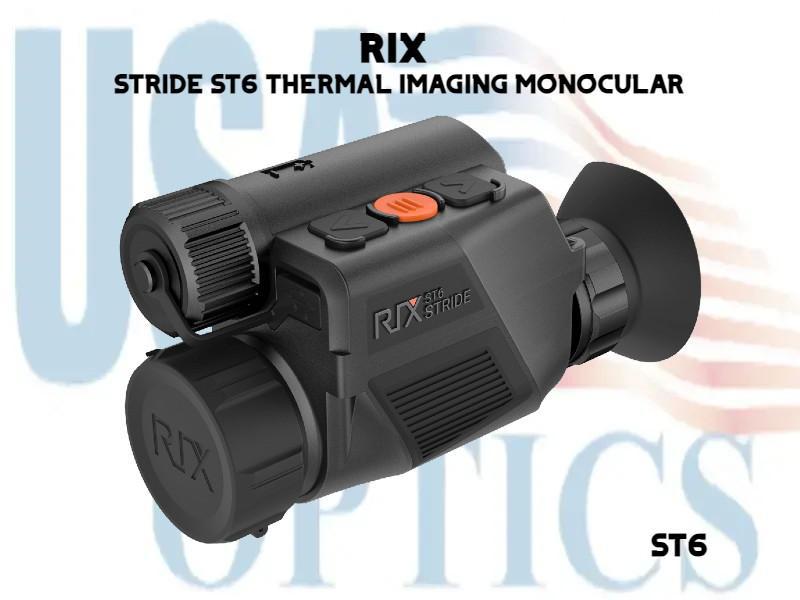

RIX, STRIDE-ST6, STRIDE ST6 THERMAL IMAGING MONOCULAR

The STRIDE ST6 utilizes advanced thermal imaging technology and a high sensitivity infrared detector for superior outdoor night vision. It can be used as a handheld or mounted on a helmet.  The STRIDE ST6 is lightweight, compact and has a long runtime, miking it ideal for night hunting and observationn. In addition, it has a wide range of functions such as photography and video recording.

• HIGH-PERFORMANCE SENSOR & DISPLAY - The ST6 is equipped with a high-performance 640x512 resolution detector, a 50Hz refresh rate, and a thermal resolution of NETD<25Mk, ensuring you always receive clearer, smoother, and more detailed images. The ST6 features a 0.39-inch full-color OLED display with 1024x768 resolution, providing a stunning visual experience while observing with the device.
• SIX IMAGE MODES & 1X OPTICAL MAGNIFICATION - The ST6 comes with six different image modes, each designed for a specific purpose. White Hot, Black Hot, and Red Hot help you easily find targets. Edge enhances target recognition. Iron helps increase chances of recognition and identification. Green Hot reduces discomfort during prolonged use and movement. It also offers 1x optical magnification, providing a clear and natural viewing experience like that of your own eyes, which lets you walk or drive confidently in the dark.
• 10H OPERATION TIME - We have greatly improved the energy efficiency of the STRIDE. Now, when you flip the device, it automatically goes into sleep mode to conserve energy. With a single 18650 battery, you can enjoy up to 10 hours of extended battery life.
• INCREDIBLY LIGHTWEIGHT & COMPACT DESIGN - The ST6 weighs approximately 0.6lbs, is palm-sized, and designed for ease-of-use and portability so it can be comfortably used as a handheld or helmet-mounted device.
• 1969YDS DETECTION DISTANCE - Thanks to its excellent lens structure and powerful detector, the ST6 achieves a detection range of up to 1969YDS.
• RECORDING AND WI-FI - The ST6 has built-in photo and video recording capabilities and a large 64GB internal storage. You can connect to external devices via Wi-Fi or a data cable for easy content transfer.

Sensor Specifications

• Type - VOx Uncooled
• Resolution, pixels - 640×512
• Pixel Pitch, μm - 12
• NETD, mk - <25
• Frame Rate, Hz - 50

Optical Specifications

• Objective Lens, mm - 26.7
• Optic Zoom, x - 1
• Field of View (H), degrees / yd @ 100 yd - /
• Field of View - 16.3° × 12.3°
• Digital Zoom, x - 1 to 6
• Eye Relief, mm - 20
• Diopter Adjustment, D - -5 to +2
• Detection Range,m/yd - 1800 / 1969

Display Specifications

• Type - OLED
• Resolution, pixels - 1024x768

Wi-Fi

• Wireless Protocol - Wi-Fi
• Frequency, GHz - 2.4

Video Recorder

• Video / Photo Resolution, pixels - 640×512
• Video / Photo Format - .mp4 / .jpg
• Memory Capacity, GB - 64

Physical Specifications

• Degree of Protection, IP code - IP67
• Operating Temperature Range, °F - -4 to +122
• Dimension, inch - 4.5x2.8x1.9
• Weight, lb - ＜0.6 (without battery)

Connections and Compatibilities

• Battery Type - 18650
• Capacity, mAh - /
• Operating Time on Battery Pack (at t=72°F), h - Up to 10
• External Power Supply, V - 5V (Type-C USB)

WHATS IN THE BOX

• The STRIDE Series ST6
• Adapter Kit - between the device and helmet mount
• Lens Cloth
• USB Type-Cable
• Carrying Bag and Strap
• Lanyard, x1\
• Screw - securing the lanyard to the device
• Battery Charger
• Battery - in the device
• Instruction Manual
• Quick Use Guide
