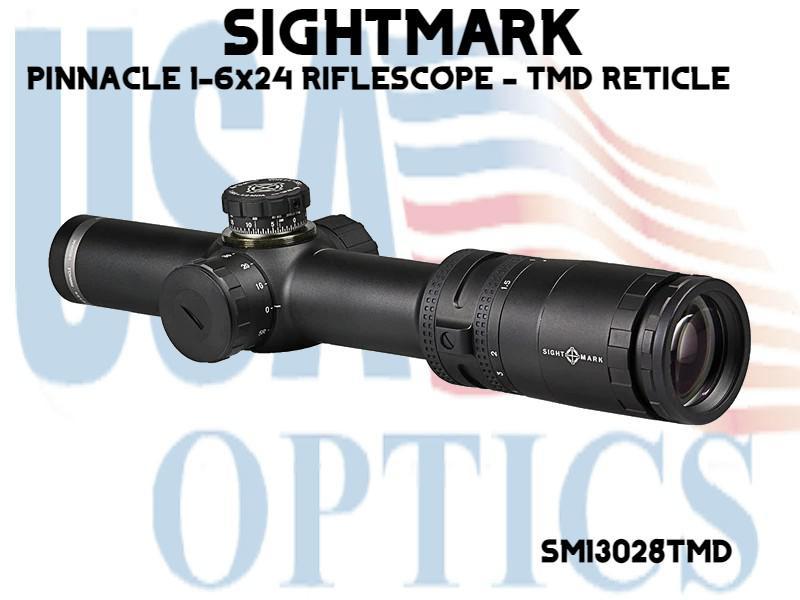

SIGHTMARK, SM13028TMD, PINNACLE 1-6x24 RIFLESCOPE - TMD RETICLE

Engineered with Sightmark’s Triple Duty concept, the 1-6x24TMD features a Tactical Mil-Dash first-focal plane reticle for rangefinding and quick target acquisition in competition, tactical or hunting scenarios. Precision-machined with high definition optics and premium Japanese glass, the Pinnacle 1-6x24TMD offers crystal clear resolution from edge to edge, free from distortions at any magnification. The red/green illuminated reticle remains in the same visual proportion to the target across the riflescope’s entire magnification range, allowing shooters to rangefind and shoot with holdovers at any magnification effectively. Its true 1x provides both-eyes-open usage for increased situational awareness at close range, while the 6x optical system hones in on far-away targets with ease. The device includes fully adjustable ballistic-tested BDC dials for both 5.56x45 55gr and 7.62x51 180gr loads. The riflescope boasts constant eye relief and a 6:1 zoom ratio for long-range shots, a wide field of view and 5 brightness settings for unmatched clarity in bright to lowlight conditions. Waterproof, fog proof and shock proof, it is fully submergible to 1m of water. Shooters have the luxury of a capped or exposed turret option as well as scratch-resistant lenses, helping to further protect the optic from impact.

The Pinnacle has been tested and comes recommended by the National Tactical Officers Association to enhance the performance of law enforcement personnel and tactical response teams.

• Premium Japanese Glass
• Fully Multi-Coated Optics
• Scratch Resistant Lenses
• Constant Eye Relief
• 6:1 Zoom Ratio
• First Focal Plane Reticle
• Capped or Exposed Turret Option
• 5.56 and 7.62 Ballistic Matched BDC Dials
• Red or Green Illuminated Reticle
• Fast Focus Eyepiece
• Waterproof, Fogproof, Shockproof
• 30mm Single Piece Tube
• Precision Machined
• Aircraft Grade Aluminum
• Hard Anodized Finish

• Reticle, Type - TMD
• Reticle, Color - Red/Green
• Reticle, Illuminated - Yes
• Setting, Brightness - 5
• Finish/Color - Matte Black
• Magnification - 1 - 6 x
• Diameter, Objective Lens - 24 mm
• Diameter, Eyepiece - 33 mm
• Diameter, Exit Pupil - 24 - 4 mm
• Eye Relief - 4.1 / 103 in/mm
• Field of View - 29.7 - 5.2 m @100m
• Field of View - 29.7 - 5.2 m @100m
• Field of View - 29.7 - 5.2 m @100m
• Diopter Adjustment - +3.5 to -3.5
• Diameter, Tube - 30 mm
• Parallax Setting - 100 yds
• Windage Range of Adjustment - 40 MRAD
• Elevation Range of Adjustment - 40 MRAD
• MRAD Adjustment, 1 click - 0.1 MRAD
• Maximum Recoil - .338 Win
• Battery Type - CR2032
• Battery Life - Red: (high) 50 - (low) 2000 / Green: (high) 30 - (low) 800 hours
• Battery Voltage - 3 V
• Sunshade - No
• Nitrogen Purged - Yes
• Shockproof - Yes
• Fog Proof - Yes
• Focal Plane - First
• IP Standard - IP67 (submergible to 1m)
• Body Material - Aluminum
• Material, Lens - Glass
• Lens Coating - Fully multi-coated
• Operating Temp,°F/°C - -20 to 160 / -29 to 71 F/C
• Length - 10.2 / 260 in/mm
• Width- 2.89 / 73.5 in/mm
• Height - 2.2 / 56 in/mm
• Weight - 20.4 oz

• 5.56x45 55gr BDC Dial
• 7.62x51 180gr BDC Dial
• Turret Caps (2)
• Thread Protector (2)
• CR2032 Battery
• Manual
