SIGHTMARK, SM18041, WRAITH 4K MINI 2-16x32 DIGITAL RIFLESCOPE
SIGHTMARK, SM18041, WRAITH 4K MINI 2-16x32 DIGITAL RIFLESCOPE
Regular price
$799.97 USD
Regular price
Sale price
$799.97 USD
Unit price
per

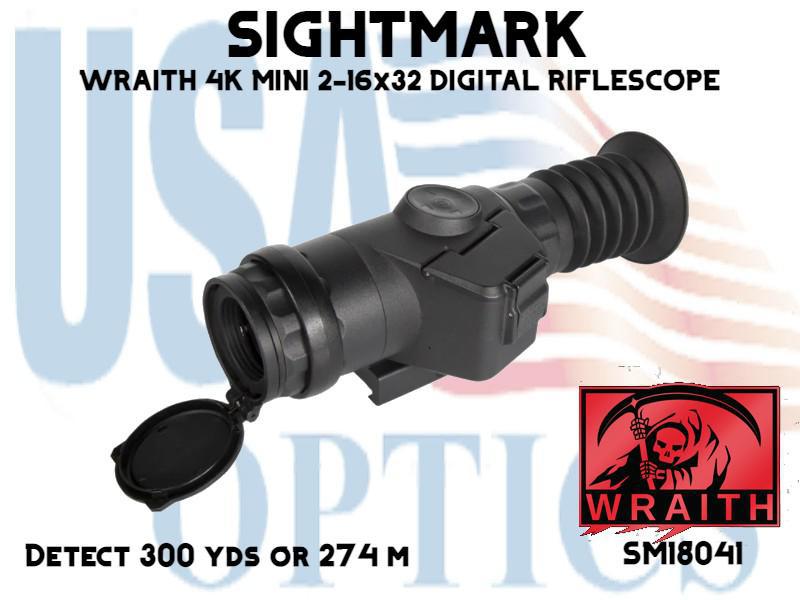

WRAITH 4K MINI 2-16x32 DIGITAL RIFLESCOPE
The Wraith 4K Mini 2-16x32 Digital Riflescope combines Sightmark's rugged quality with the most advanced digital optic technology available to deliver the finest day/night riflescope known to the firearms industry. Boasting an incredible 4K (3840x2160) CMOS sensor, the Wraith 4K Mini detects objects up to 300 yards away in the darkest of nights and displays them on a flawless 1280x720 FLCOS screen.
Although it's extremely light and compact, the Wraith 4K Mini features big-time capabilities. The Wraith 4K Mini's built-in recorder produces .AVI-format videos in 1080p and/or 4K resolution, ensuring every shooting memory is captured and preserved in incredible detail. With 8x digital zoom, full-color HD imaging during the daytime and two digital night vision color palettes (green or black & white), 850nm IR illuminator and first-focal-plane reticle options, the Wraith 4K Mini enables shooters to locate and engage targets, near or far, with speed and precision.
Supremely durable, the Wraith 4K Mini is a solid aluminum scope that operates in temperatures ranging from
32°F to 140°F (0 to 60C), shockproof for drops up to 3 ft., IPX6 water resistant and capable of handling recoil up to .308 Winchester.
FEATURES
- 4K Digital Imaging
- 2-16x magnification, 8x digital zoom
- 300-yard night detection range
- Night vision mode
- Daytime color mode
- Built-in 4K video recording with audio capabilities
- 14 reticle options with 9 colors
SPECIFICATIONS
ELECTRONICS COMPONENTS
- Type of Sensor - CMOS Sensor
- Sensor Resolution, pixels - 4K (3840x2160)
- Display Type - FLCOS
- Display Resolution, pix. - 1280x720
- Built-In Video Recorder Availability - Yes
- Maximum Memory Card Supported, Gb - 256
- Format of Video Clip - AVI
- Resolution of Video Clip - 1080/4K
- Format of Photo Files - JPEG
- Resolution of Photo Files - 4K
- Memory Capacity - Approximately 1.75 hours video with 64gb SD card on 4k@30 quality level
OPTICAL CHARACTERISTICS
- Magnification - 2-16
- Lens Diameter, mm - 32
- Digital Zoom - 1-8x
- Lens Focus, mm - 50.3mm
- Field of View, °, horizontal - 7.62
- Field of View, m@100m - 13.33
- Field of View, ft@100yd - 40
- Minimum Focusing Distance, ft/m - 5/1.524
- Eye Relief, in/mm - 2.4 / 60
- Diopter Adjustment, dptr. - -6 to +3
IR-ILLUMINATOR
- Emitter - LED
- IR Wavelength, nm - 850nm
- Equivalent IR Power, mW - ~1060 on high, ~540 on medium, ~400 on low<BR>
- Battery Life - 2 Hours on High
- Battery Type - 2x CR123A
RANGE OF DETECTION
- Night Vision Detection Range, yd/m - 300/274
POWER SUPPLY
- Power Supply, v - 6
- Battery Type - 2x CR123A
- Battery Life - 3.6 Hrs Video Mode/ 4.4 Hrs Preview Mode
- External Power Supply - 5V Via MicroUSB
RETICLE
- Windage & Elevation Click Value - 1 pixel/ ~X0.4 MOA
- Adjustment Range, Elevation - ~ 150 MOA
- Adjustment Range, Windage - ~ 350 MOA
- Number of Reticle Options - 10 SFP / 4 FFP
- Colors - Black, White, Red, Blue, Green, Cyan, Orange, Yellow, Magenta
PHYSICAL & OPERATIONAL CHARACTERISTICS
- Body Material - Aluminum
- Accessory Rail Mount - Picatinny
- Operating Temp,°F / °;C - 32 to 140 / 0 to 60
- Waterproof Rating - IPX6 - Water Resistant
- Nitrogen Purged, - no
- Shockproof - yes, 3ft
- Maximum Recoil, Caliber - .308
- Tube Diameter - n/a
- Length, in/mm - 6.299/160
- Width, in/mm - 3.031/77
- Height, in/mm - 2.913/74
- Weight (with batteries), oz - 21.6 oz
WHATS IN THE BOX
- 850nm IR Illuminator
- Flip-up lens cover
- Focus throw lever
- Eye cup
- Fixed picatinny mount
- User manual
