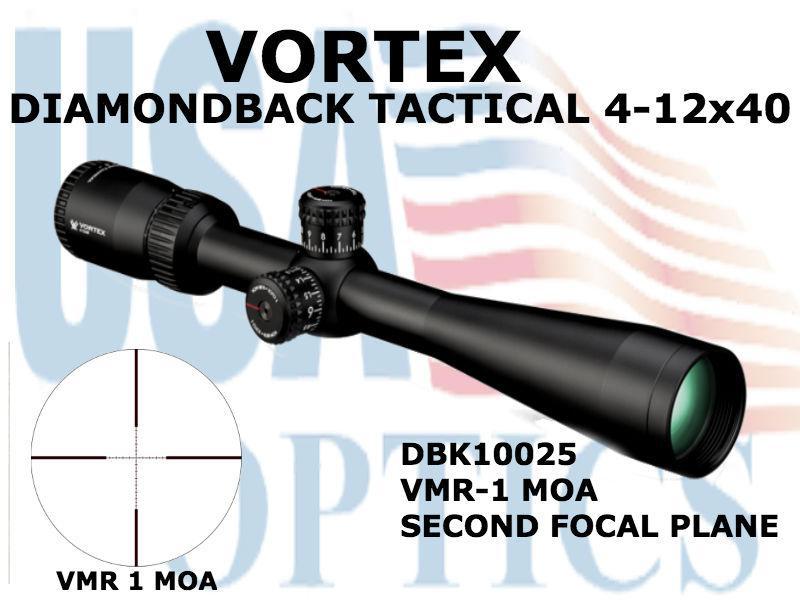

VORTEX, DBK-10025, DIAMONDBACK TACTICAL 4-12x40

Exposed tactical turrets built for dialing elevation and windage allow quick and precise bullet drop and wind drift compensation at extended ranges. When we say precise-we mean it. These turrets track better than any Bloodhound and reliably return to zero every time. A zero-reset feature lets you re-index the zero reference marks on both turrets after sight in, while fiber optic rotation indicators integrated into the turrets provide a visual cue of your turret's position.


OPTICAL FEATURES

• XD Lens Elements - Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images
• XR Fully Multi-Coated - Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces
• Second Focal Plane Reticle - Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification

CONSTRUCTION FEATURES

• Tube Size - 1 inch diameter
• Single-Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness
• Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity
• Waterproof - O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments
• Fogproof - Argon gas purging prevents internal fogging over a wide range of temperatures
• Shockproof - Rugged construction withstands recoil and impact
• Hard Anodized Finish - Highly durable low-glare matte finish helps camouflage the shooter's position
• Precision-Glide Erector System - Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions
• Exposed Tactical Turrets - The Diamondback Tactical scopes feature tactical windage and elevation turrets with Zero Reset making adjustments back to zero easy and quick

INTERNAL MECHANISM DESIGN FEATURES

• Precision-Glide Erector System - Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions

CONVENIENCE FEATURES

• Fast Focus Eyepiece - Allows quick and easy reticle focusing<BR>
• Fiber Optic Radius Bar - The patented fiber optic Radius Bar visually assists tracking turret rotations
• Magnification Rib - The raised rib on the magnification ring facilitates fast magnification changes in the heat of action

• Magnification - 4-12 x
• Objective Lens Diameter - 40 mm
• Eye Relief - 3.9 inches
• Field of View - 23.6-7.9 feet/100 yards
• Tube Size - 1 Inch
• Turret Style - Tactical
• Adjustment Graduation - 1/4 MOA
• Travel per Rotation - 12 MOA
• Max Elevation Adjustment - 70 MOA
• Max Windage Adjustment - 70 MOA
• Parallax Setting - 100 yards
• Length - 14.2 inches
• Weight - 16.2 ounces

VMR-1 RETICLE - Designed to maximize long distance shooting and ranging abilities, the VMR-1 MOA reticle can be used to effectively determine ranges, holdovers, windage corrections and moving target leads.
