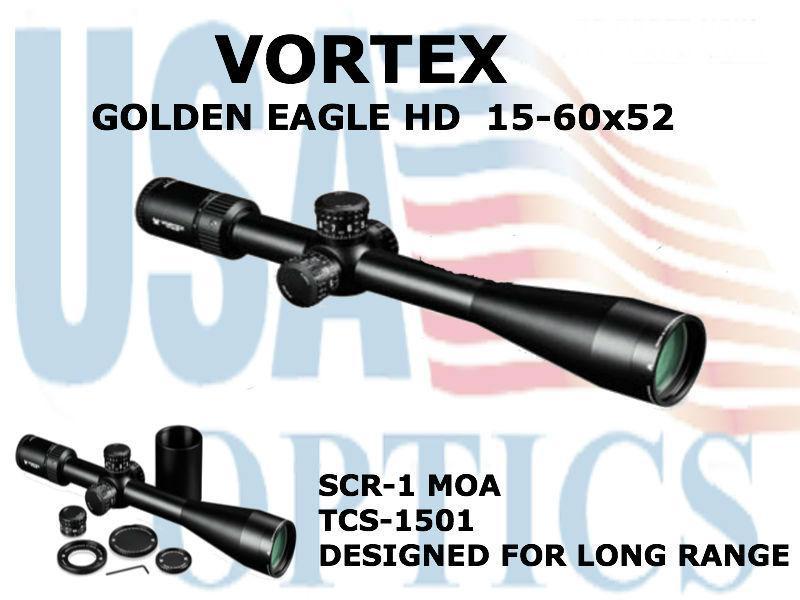

VORTEX, TCS-1501, GOLDEN EAGLE HD 15-60x52 SCR-1 SFP MOA

The Golden Eagle HD offers a unique set of features specifically designed for F Class and Bench Rest competition shooters. The 15-60x magnification range, ultra-precise 1/8 MOA adjustments and extremely fine, second focal plane reticle options help maximize precision on known-distance long-range targets. All these features and more are complimented by a top-tier optical system making for a super-sharp target picture down range and the ability to read mirage and other wind indicators accurately. Equally impressive, the Golden Eagle weighs in at a relatively light 29.5 ounces, helping shooters adhere to strict competition weight limits. When you're going for gold in F Class or Bench Rest, go for the Golden Eagle to top your rifle.


OPTICAL FEATURES

• APO System - Index-matched lenses correct color across the entire visual spectrum.
• Optically Indexed Lenses - Optimize image sharpness and brightness from edge to edge.
• HD Lens Elements - Premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in high-definition images.
• XR Plus Fully Multi-Coated - Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
• Plasma Tech - Cutting edge coating application process provides unparalleled coating durability and performance.
• Second Focal Plane Reticle - Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

CONSTRUCTION FEATURES

• Tube Size - 30 mm diameter provides maximized internal adjustment and strength.
• Single-Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
• Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
• Waterproof - O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
• Fogproof - Argon gas purging prevents internal fogging over a wide range of temperatures.
• Shockproof - Rugged construction withstands recoil and impact.
• ArmorTek - Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
• Side Focus - Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.

INTERNAL MECHANISM DESIGN FEATURES

• Extra-Fine Resolution Turret The resolute increment of adjustment of just 0.125 MOA per click allows competitive shooters to make very small adjustments to fine tune their shots.

CONVENIENCE FEATURES

• Fast Focus Eyepiece - Allows quick and easy reticle focusing.
• Optional 10 MOA Windage Turret - Included accessory turret allows for dialing a full 10 MOA revolution of windage before the scale repeats.
• ASR (Aperature Stop Ring) - Broadens the depth of focus allowing the shooter to more easily observe down range mirage and other wind indicators while keeping the target in focus.
• Aluminum Lens Caps - Premium aluminum screw on eyepiece and objective lens covers included.

• Magnification - 15-60x
• Objective Lens Diameter - 52 mm
• Eye Relief - 3.9
• Field of View - 6.3-1.7 feet/100 yards
• Tube Size - 30mm
• Turret Style - Target
• Adjustment Graduation - 1/8 MOA
• Travel per Rotation - 10 MOA
• Max Elevation Adjustment - 55 MOA
• Max Windage Adjustment - 45 MOA
• Parallax Setting - 15 to Infinity
• Length - 16.1 inches
• Weight - 29.7 oz

SCR-1 RETICLE (MOA) - The SCR-1 (Simple Crosshair Reticle) is the exact opposite of a "busy" reticle. The only thing that needs your attention is a traditional set of fine crosshairs that subtend 0.016 MOA at 40.

• Lens cloth
• 2mm xex wrench
• 35mm ASR (Aperature Stop Ring)
• Extra windage turret with alternative laser markings
• Aluminum objective and eyepiece lens covers
• 3" sunshade
