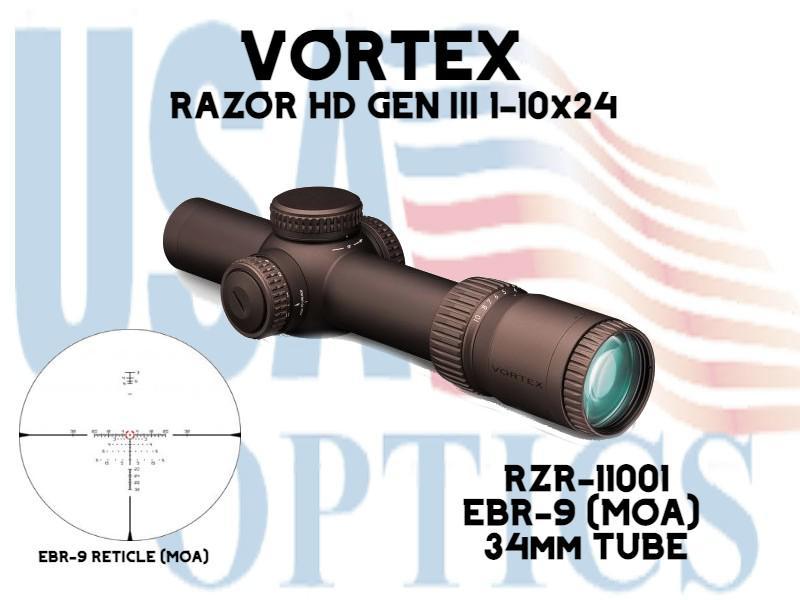

VORTEX, RZR-11001, RAZOR HD GEN III 1-10x24 FFP EBR-9 MOA RETICLE 34mm TUBE
VORTEX, RZR-11001, RAZOR HD GEN III 1-10x24 FFP EBR-9 MOA RETICLE 34mm TUBE
Regular price
$2,499.99 USD
Regular price
Sale price
$2,499.99 USD
Unit price
per
RAZOR HD GEN III 1-10x24 FFP EBR-9 MOA RETICLE 34mm TUBE
The next evolution of Vortex's wildly popular Razor line, the Razor HD Gen III 1-10x24 brings the highest level of first focal plane performance to those who demand the versatility of 1-10x power. Military, law enforcement, and competition shooters alike will love the clarity of an HD optical system and a crisp, illuminated reticle in a package that weighs the same as their 1-6x, but doesn't sacrifice any durability. A true 1x on the low end and daylight bright illumination for reliable performance in all conditions makes this a single solution for close-quarters and long-range.
FEATURES
OPTICAL FEATURES
- HD Optical System - Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
- XR Fully Multi-Coated - Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
- APO System - Index-matched lenses correct color across the entire visual spectrum.
- Optically Indexed Lenses - Optimize image sharpness and brightness from edge to edge.
- First Focal Plane Reticle - Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
- Glass-Etched Reticle - Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
- Daylight Bright Illumination - Daylight bright, illuminated reticle aids in faster target acquistion in bright daylight conditions.
CONSTRUCTION FEATURES
- ArmorTek - Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
- Shockproof - Rugged construction withstands recoil and impact.
- Waterproof - IPX7 - Designed to meet IPX7 waterproofing standards.
- Fogproof - Argon gas purging prevents internal fogging over a wide range of temperatures.
- Tube Size - 34 mm diameter provides maximized internal adjustment and strength.
- Hard Anodized Stealth Shadow Finish - Highly durable anodization provides a low-glare matte surface and helps camouflage the shooter's position.
- Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
INTERNAL MECHANISM DESIGN FEATURES
- Friction Reduction System - Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact.
- Erector Tube System - Precision-machined from premium brass alloy with anti-galling properties for strength and durability. Chromium vanadium erector spring, tumble-polished.
CONVENIENCE FEATURES
- L-Tec Tool - Included with your scope for precise adjustments to the turret.
- Locking Side Illumination - Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.
SPECIFICATIONS
- Magnification - 1-10x
- Objective Lens Diameter - 24mm
- Eye Relief - 3.6 inches
- Field of View - 116-11.7 ft @100 yds
- Tube Size - 34mm
- Turret Style - Low Capped
- Adjustment Graduation - 1/4 MOA
- Travel Per Rotation - 25 MOA
- ax Elevation Adjustment - 120 MOA
- Max Windage Adjustment - 120 MOA
- Parallax Setting - Fixed @100 yds
- Length - 10.1 inches
- Weight - 21.5 oz
WHATS IN THE BOX
- Sunshade
- Lens cloth
- CR2032 Battery
- Throw lever
- L-TEC Tool
RETICLE
EBR-9 (MOA) - The EBR-9 (Enhanced Battle Reticle) is a hashmarked ranging reticle using MOA based subtension lines for ranging, holdover, and windage corrections.
