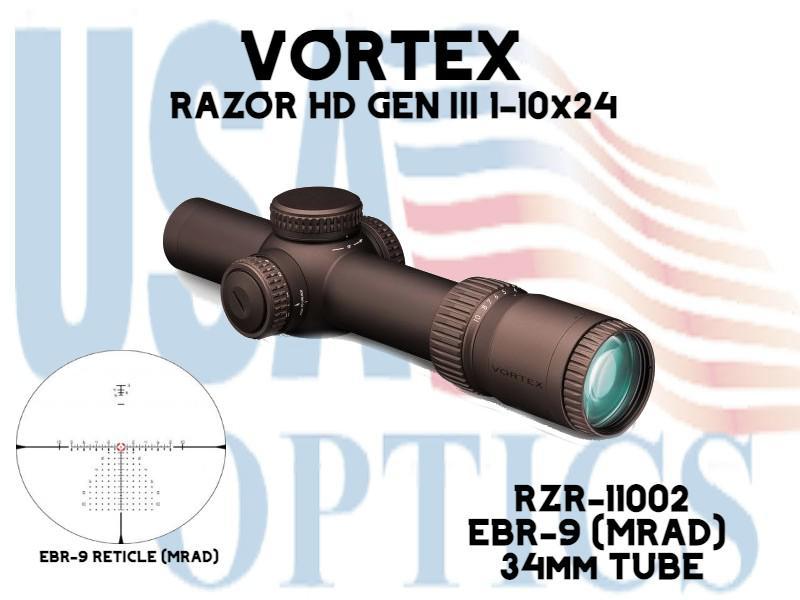

VORTEX, RZR-11002, RAZOR HD GEN III 1-10x24 FFP EBR-9 MRAD RETICLE 34mm

The next evolution of Vortex's wildly popular Razor line, the Razor HD Gen III 1-10x24 brings the highest level of first focal plane performance to those who demand the versatility of 1-10x power. Military, law enforcement, and competition shooters alike will love the clarity of an HD optical system and a crisp, illuminated reticle in a package that weighs the same as their 1-6x, but doesn't sacrifice any durability. A true 1x on the low end and daylight bright illumination for reliable performance in all conditions makes this a single solution for close-quarters and long-range.


OPTICAL FEATURES

• HD Optical System - Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
• XR Fully Multi-Coated - Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
• APO System - Index-matched lenses correct color across the entire visual spectrum.
• Optically Indexed Lenses - Optimize image sharpness and brightness from edge to edge.
• First Focal Plane Reticle - Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
• Glass-Etched Reticle - Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
• Daylight Bright Illumination - Daylight bright, illuminated reticle aids in faster target acquistion in bright daylight conditions.

CONSTRUCTION FEATURES

• ArmorTek - Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
• Shockproof - Rugged construction withstands recoil and impact.
• Waterproof - IPX7 - Designed to meet IPX7 waterproofing standards.
• Fogproof - Argon gas purging prevents internal fogging over a wide range of temperatures.
• Tube Size - 34 mm diameter provides maximized internal adjustment and strength.
• Hard Anodized Stealth Shadow Finish - Highly durable anodization provides a low-glare matte surface and helps camouflage the shooter's position.
• Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.

INTERNAL MECHANISM DESIGN FEATURES

• Friction Reduction System - Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. US Patent 7,958,665
• Erector Tube System - Precision-machined from premium brass alloy with anti-galling properties for strength and durability. Chromium vanadium erector spring, tumble-polished.

CONVENIENCE FEATURES

• L-Tec Tool - Included with your scope for precise adjustments to the turret.
• Locking Side Illumination - Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.

• Magnification - 1-10x
• Objective Lens Diameter - 24mm
• Eye Relief - 3.6 inches
• Field of View - 116-11.7 ft @100 yds
• Tube Size - 34mm
• Turret Style - Low Capped
• Adjustment Graduation - .1 MRAD
• Travel Per Rotation - 10 MRAD
• Max Elevation Adjustment - 30 MRAD
• Max Windage Adjustment - 30 MRAD
• Parallax Setting - Fixed @100 yds
• Length - 10.1 inches
• Weight - 21.5 oz

• Sunshade
• Lens cloth
• CR2032 Battery
• Throw lever
• L-TEC Tool

EBR-9 (MRAD) - The EBR-9 (Enhanced Battle Reticle) is a hashmarked ranging reticle using MRAD based subtension lines for ranging, holdover, and windage corrections.
